02/11/1973 Marpol-verdrag
Internationaal Verdrag van 2 november 1973 ter voorkoming van verontreiniging door schepen

Annex VI Regulations for the Prevention of Air Pollution from Ships

Chapter I General

Regulation 1 Application

[The provisions of this Annex shall apply to all ships, except where expressly provided otherwise in [regulations 3, 5, 6, 13, 15, 16, 18, 19, 20, 21, 22 and 22A] of this Annex.]

Wetshistoriek

Vervangen bij Res. MEPC.203(62), corr., 26 september 2011, met ingang van 1 januari 2013 en gewijzigd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Regulation 2 Definitions

For the purpose of this Annex:

1

Annex means Annex VI to the International Convention for the Prevention of Pollution from Ships 1973 (MARPOL), as modified by the Protocol of 1978 relating thereto, and as modified by the Protocol of 1997, as amended by the Organization, provided that such amendments are adopted and brought into force in accordance with the provisions of article 16 of the present Convention.

2

A similar stage of construction means the stage at which:

1: construction identifiable with a specific ship begins; and
2: assembly of that ship has commenced comprising at least 50 tons or one per cent of the estimated mass of all structural material, whichever is less.

3

Anniversary date means the day and the month of each year which will correspond to the date of expiry of the International Air Pollution Prevention Certificate.

4

Auxiliary control device means a system, function, or control strategy installed on a marine diesel engine that is used to protect the engine and/or its ancillary equipment against operating conditions that could result in damage or failure, or that is used to facilitate the starting of the engine. An auxiliary control device may also be a strategy or measure that has been satisfactorily demonstrated not to be a defeat device.

5

Continuous feeding is defined as the process whereby waste is fed into a combustion chamber without human assistance while the incinerator is in normal operating conditions with the combustion chamber operative temperature between 850°C and 1,200°C.

6

Defeat device means a device which measures, senses, or responds to operating variables (e.g., engine speed, temperature, intake pressure or any other parameter) for the purpose of activating, modulating, delaying or deactivating the operation of any component or the function of the emission control system such that the effectiveness of the emission control system is reduced under conditions encountered during normal operation, unless the use of such a device is substantially included in the applied emission certification test procedures.

7

Emission means any release of substances, subject to control by this Annex, from ships into the atmosphere or sea.

8

Emission Control Area means an area where the adoption of special mandatory measures for emissions from ships is required to prevent, reduce and control air pollution from NO_x or SO_x and particulate matter or all three types of emissions and their attendant adverse impacts on human health and the environment. Emission Control Areas shall include those listed in, or designated under, regulations 13 and 14 of this Annex.

9

[Fuel oil means any fuel delivered to and intended for combustion purposes for propulsion or operation on board a ship, including gas, distillate and residual fuels.]

10

Gross tonnage means the gross tonnage calculated in accordance with the tonnage measurement regulations contained in Annex I to the International Convention on Tonnage Measurements of Ships, 1969 or any successor Convention.

11

Installations in relation to regulation 12 of this Annex means the installation of systems, equipment including portable fire-extinguishing units, insulation, or other material on a ship, but excludes the repair or recharge of previously installed systems, equipment, insulation, or other material, or the recharge of portable fire-extinguishing units.

12

Installed means a marine diesel engine that is or is intended to be fitted on a ship, including a portable auxiliary marine diesel engine, only if its fuelling, cooling, or exhaust system is an integral part of the ship. A fuelling system is considered integral to the ship only if it is permanently affixed to the ship. This definition includes a marine diesel engine that is used to supplement or augment the installed power capacity of the ship and is intended to be an integral part of the ship.

13

Irrational emission control strategy means any strategy or measure that, when the ship is operated under normal conditions of use, reduces the effectiveness of an emission control system to a level below that expected on the applicable emission test procedures.

14

[Marine diesel engine means any reciprocating internal combustion engine operating on liquid or dual fuel, to which regulation 13 of this Annex applies, including booster/compound systems if applied. In addition, a gas fuelled engine installed on a ship constructed on or after 1 March 2016 or a gas fuelled additional or non-identical replacement engine installed on or after that date is also considered as a marine diesel engine.]

15

NO_x Technical Code means the Technical Code on Control of Emission of Nitrogen Oxides from Marine Diesel Engines adopted by resolution 2 of the 1997 MARPOL Conference, as amended by the Organization, provided that such amendments are adopted and brought into force in accordance with the provisions of article 16 of the present Convention.

16

Ozone depleting substances means controlled substances defined in paragraph (4) of article 1 of the Montreal Protocol on Substances that Deplete the Ozone Layer, 1987, listed in Annexes A, B, C or E to the said Protocol in force at the time of application or interpretation of this Annex.

Ozone depleting substances that may be found on board ship include, but are not limited to:

: Halon 1211 Bromochlorodifluoromethane
: Halon 1301 Bromotrifluoromethane
: Halon 2402 1, 2-Dibromo -1, 1, 2, 2-tetraflouroethane (also known as Halon 114B2)
: CFC-11 Trichlorofluoromethane
: CFC-12 Dichlorodifluoromethane
: CFC-113 1, 1, 2 – Trichloro – 1, 2, 2 – trifluoroethane
: CFC-114 1, 2 – Dichloro –1, 1, 2, 2 – tetrafluoroethane
: CFC-115 Chloropentafluoroethane

17

Shipboard incineration means the incineration of wastes or other matter on board a ship, if such wastes or other matter were generated during the normal operation of that ship.

18

Shipboard incinerator means a shipboard facility designed for the primary purpose of incineration.

19

Ships constructed means ships the keels of which are laid or which are at a similar stage of construction.

20

Sludge oil means sludge from the fuel oil or lubricating oil separators, waste lubricating oil from main or auxiliary machinery, or waste oil from bilge water separators, oil filtering equipment or drip trays.

21

[”Tanker” in relation to regulation 15 means an oil tanker as defined in regulation 1 of Annex I or a chemical tanker as defined in regulation 1 of Annex II of the present Convention.]

[For the purpose of chapter 4:

22

“Existing ship” means a ship which is not a new ship.

23

“New ship” means a ship:

1: for which the building contract is placed on or after 1 January 2013; or
2: in the absence of a building contract, the keel of which is laid or which is at a similar stage of construction on or after 1 July 2013; or
3: the delivery of which is on or after 1 July 2015.

24

“Major Conversion” means in relation to chapter 4 a conversion of a ship:

1: which substantially alters the dimensions, carrying capacity or engine power of the ship; or
2: which changes the type of the ship; or
3: the intent of which in the opinion of the Administration is substantially to prolong the life of the ship; or
4: which otherwise so alters the ship that, if it were a new ship, it would become subject to relevant provisions of the present Convention not applicable to it as an existing ship; or
5: which substantially alters the energy efficiency of the ship and includes any modifications that could cause the ship to exceed the applicable required EEDI as set out in regulation 21.

25

“Bulk carrier” means a ship which is intended primarily to carry dry cargo in bulk, including such types as ore carriers as defined in SOLAS chapter XII, regulation 1, but excluding combination carriers.

26

[“Gas carrier” in relation to chapter 4 of this Annex means a cargo ship, other than an LNG carrier as defined in paragraph 38 of this regulation, constructed or adapted and used for the carriage in bulk of any liquefied gas.]

27

“Tanker” in relation to chapter 4 means an oil tanker as defined in MARPOL Annex I, regulation 1 or a chemical tanker or an NLS tanker as defined in MARPOL Annex II, regulation 1.

28

“Container ship” means a ship designed exclusively for the carriage of containers in holds and on deck.

29

“General cargo ship” means a ship with a multi-deck or single deck hull designed primarily for the carriage of general cargo. This definition excludes specialized dry cargo ships, which are not included in the calculation of reference lines for general cargo ships, namely livestock carrier, barge carrier, heavy load carrier, yacht carrier, nuclear fuel carrier.

30

“Refrigerated cargo carrier” means a ship designed exclusively for the carriage of refrigerated cargoes in holds.

31

“Combination carrier” means a ship designed to load 100% deadweight with both liquid and dry cargo in bulk.

32

“Passenger ship” means a ship which carries more than 12 passengers.

33

“Ro-ro cargo ship (vehicle carrier)” means a multi deck roll-on-roll-off cargo ship designed for the carriage of empty cars and trucks.

34

“Ro-ro cargo ship” means a ship designed for the carriage of roll-on-roll-off cargo transportation units.

35

“Ro-ro passenger ship” means a passenger ship with roll-on-roll-off cargo spaces.

36

“Attained EEDI” is the EEDI value achieved by an individual ship in accordance with regulation 20 of chapter 4.

37

“Required EEDI” is the maximum value of attained EEDI that is allowed by regulation 21 of chapter 4 for the specific ship type and size.]

38

[“LNG carrier” in relation to chapter 4 of this Annex means a cargo ship constructed or adapted and used for the carriage in bulk of liquefied natural gas (LNG).

39

“Cruise passenger ship” in relation to chapter 4 of this Annex means a passenger ship not having a cargo deck, designed exclusively for commercial transportation of passengers in overnight accomodations on a sea voyage.

40

“Conventional propulsion” in relation to chapter 4 of this Annex means a method of propulsion where a main reciprocating internal combustion engine(s) is the prime mover and coupled to a propulsion shaft either directly or through a gear box.

41

“Non-conventional propulsion” in relation to chapter 4 of this Annex means a method of propulsion, other than conventional propulsion, including diesel-electric propulsion, turbine propulsion, and hybrid propulsion systems.

42

[Polar Code means the International Code for Ships Operating in Polar Waters, consisting of an introduction, parts I-A and II-A and parts I-B and II-B, adopted by resolutions MSC.385(94) and MEPC.264(68), as may be amended, provided that:

.1: amendments to the environment-related provisions of the introduction and chapter 1 of part II-A of the Polar Code are adopted, brought into force and take effect in accordance with the provisions of article 16 of the present Convention concerning the amendment procedures applicable to an appendix to an annex; and
.2: amendments to part II-B of the Polar Code are adopted by the Marine Environment Protection Committee in accordance with its Rules of Procedure.]

43

A ship “delivered on or after 1 September 2019” means a ship:

.1: for which the building contract is placed on or after 1 September 2015; or
.2: in the absence of a building contract, the keel of which is laid, or which is at a similar stage of construction, on or after 1 March 2016; or
.3: the delivery of which is on or after 1 September 2019.

[For the purposes of this annex:

44

“Audit” means a systematic, independent and documented process for obtaining audit evidence and evaluating it objectively to determine the extent to which audit criteria are fulfilled.

45

“Audit Scheme” means the IMO Member State Audit Scheme established by the Organization and taking into account the guidelines developed by the Organization.

46

“Code for Implementation” means the IMO Instruments Implementation Code (III Code) adopted by the Organization by resolution A.1070(28).

47

“Audit Standard” means the Code for Implementation.

[48

“Calendar year” means the period from 1 January until 31 December inclusive.]

[49

“Company” means the owner of the ship or any other organization or person such as the manager, or the bareboat charterer, who has assumed the responsibility for operation of the ship from the owner of the ship and who on assuming such responsibility has agreed to take over all the duties and responsibilities imposed by the International Management Code for the Safe Operation of Ships and for Pollution Prevention, as amended.]

[50

“Distance travelled” means distance travelled over ground.]

[51

Electronic Record Book means a device or system, approved by the Administration, used to electronically record the required entries for discharges, transfers and other operations as required under this Annex in lieu of a hard copy record book.]

Wetshistoriek

Definitie 9 vervangen bij Res. MEPC. 258 (67), met ingang van 1 maart 2016.

Definitie 14 vervangen bij Res. MEPC. 258 (67), met ingang van 1 maart 2016.

Definitie 21 vervangen bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Definities 22 tot 25 ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Definitie 26 ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013 en gewijzigd bij Res. MEPC.251(66), met ingang van 1 september 2015.

Definities 27 tot 37 ingevoegd bij Res. MEPC.203(62), met ingang van 1 september 2013.

Definitie 38 ingevoegd Res. MEPC.251(66), met ingang van 1 september 2015.

Definitie 39 ingevoegd Res. MEPC.251(66), met ingang van 1 september 2015.

Definitie 40 ingevoegd Res. MEPC.251(66), met ingang van 1 september 2015.

Definitie 41 ingevoegd Res. MEPC.251(66), met ingang van 1 september 2015.

Definitie 42 ingevoegd Res. MEPC.251(66), met ingang van 1 september 2015 en vervangen bij Res. MEPC.316(74), met ingang van 1 oktober 2020.

Definitie 43 ingevoegd Res. MEPC.251(66), met ingang van 1 september 2015.

Definities 44 tot 47 ingevoegd bij Res. MEPC.247(66), met ingang van 1 januari 2016.

Definities 48 tot 50 ingevoegd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Definitie 51 ingevoegd bij Res. MEPC.316(74), met ingang van 1 oktober 2020.

Regulation 3 Exceptions and Exemptions

General

Regulations of this Annex shall not apply to:

1

any emission necessary for the purpose of securing the safety of a ship or saving life at sea; or

2

any emission resulting from damage to a ship or its equipment:

2.1: provided that all reasonable precautions have been taken after the occurrence of the damage or discovery of the emission for the purpose of preventing or minimizing the emission; and
2.2: except if the owner or the master acted either with intent to cause damage, or recklessly and with knowledge that damage would probably result.

Trials for Ship Emission Reduction and Control Technology Research

The Administration of a Party may, in co-operation with other Administrations as appropriate, issue an exemption from specific provisions of this Annex for a ship to conduct trials for the development of ship emission reduction and control technologies and engine design programmes. Such an exemption shall only be provided if the applications of specific provisions of the Annex or the revised NOx Technical Code 2008 could impede research into the development of such technologies or programmes. [A permit issued under this regulation shall not exempt a ship from the reporting requirement under regulation 22A and shall not alter the type and scope of data required to be reported under regulation 22A.] A permit for such an exemption shall only be provided to the minimum number of ships necessary and be subject to the following provisions:

1: for marine diesel engines with a per cylinder displacement up to 30 litres, the duration of the sea trial shall not exceed 18 months. If additional time is required, a permitting Administration or Administrations may permit a renewal for one additional 18-month period; or
2: for marine diesel engines with a per cylinder displacement at or above 30 litres, the duration of the ship trial shall not exceed 5 years and shall require a progress review by the permitting Administration or Administrations at each intermediate survey. A permit may be withdrawn based on this review if the testing has not adhered to the conditions of the permit or if it is determined that the technology or programme is not likely to produce effective results in the reduction and control of ship emissions. If the reviewing Administration or Administrations determine that additional time is required to conduct a test of a particular technology or programme, a permit may be renewed for an additional time period not to exceed five years.

Emissions from Sea-bed Mineral Activities

3.1

Emissions directly arising from the exploration, exploitation and associated offshore processing of sea-bed mineral resources are, consistent with article 2(3)(b)(ii) of the present Convention, exempt from the provisions of this Annex. Such emissions include the following:

1: emissions resulting from the incineration of substances that are solely and directly the result of exploration, exploitation and associated offshore processing of sea bed mineral resources, including but not limited to the flaring of hydrocarbons and the burning of cuttings, muds, and/or stimulation fluids during well completion and testing operations, and flaring arising from upset conditions;
2: the release of gases and volatile compounds entrained in drilling fluids and cuttings;
3: emissions associated solely and directly with the treatment, handling, or storage of sea-bed minerals; and
4: emissions from marine diesel engines that are solely dedicated to the exploration, exploitation and associated offshore processing of sea-bed mineral resources.

3.2

The requirements of regulation 18 of this Annex shall not apply to the use of hydrocarbons which are produced and subsequently used on site as fuel, when approved by the Administration.

Wetshistoriek

2 gewijzigd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Regulation 4 Equivalents

The Administration of a Party may allow any fitting, material, appliance or apparatus to be fitted in a ship or other procedures, alternative fuel oils, or compliance methods used as an alternative to that required by this Annex if such fitting, material, appliance or apparatus or other procedures, alternative fuel oils, or compliance methods are at least as effective in terms of emissions reductions as that required by this Annex, including any of the standards set forth in regulations 13 and 14.

The Administration of a Party which allows a fitting, material, appliance or apparatus or other procedures, alternative fuel oils, or compliance methods used as an alternative to that required by this Annex shall communicate to the Organization for circulation to the Parties particulars thereof, for their information and appropriate action, if any.

The Administration of a Party should take into account any relevant guidelines developed by the Organization pertaining to the equivalents provided for in this regulation.

The Administration of a Party which allows the use of an equivalent as set forth in paragraph 1 of this regulation shall endeavour not to impair or damage its environment, human health, property, or resources or those of other States.

Chapter II Survey, certification and means of control

Regulation 5 Surveys

Every ship of 400 gross tonnage and above and every fixed and floating drilling rig and other platforms shall, to ensure compliance with the requirements of chapter 3 of this Annex, be subject to the surveys specified below:

1: An initial survey before the ship is put into service or before the certificate required under regulation 6 of this Annex is issued for the first time. This survey shall be such as to ensure that the equipment, systems, fittings, arrangements and material fully comply with the applicable requirements of chapter 3;
2: A renewal survey at intervals specified by the Administration, but not exceeding five years, except where regulation 9.2, 9.5, 9.6 or 9.7 of this Annex is applicable. The renewal survey shall be such as to ensure that the equipment, systems, fittings, arrangements and material fully comply with applicable requirements of chapter 3;
3: An intermediate survey within three months before or after the second anniversary date or within three months before or after the third anniversary date of the certificate which shall take the place of one of the annual surveys specified in paragraph 1.4 of this regulation. The intermediate survey shall be such as to ensure that the equipment and arrangements fully comply with the applicable requirements of chapter 3 and are in good working order. Such intermediate surveys shall be endorsed on the IAPP Certificate issued under regulation 6 or 7 of this Annex;
4: An annual survey within three months before or after each anniversary date of the certificate, including a general inspection of the equipment, systems, fittings, arrangements and material referred to in paragraph 1.1 of this regulation to ensure that they have been maintained in accordance with paragraph 5 of this regulation and that they remain satisfactory for the service for which the ship is intended. Such annual surveys shall be endorsed on the IAPP Certificate issued under regulation 6 or 7 of this Annex; and
5: An additional survey either general or partial, according to the circumstances, shall be made whenever any important repairs or renewals are made as prescribed in paragraph 5 of this regulation or after a repair resulting from investigations prescribed in paragraph 6 of this regulation. The survey shall be such as to ensure that the necessary repairs or renewals have been effectively made, that the material and workmanship of such repairs or renewals are in all respects satisfactory and that the ship complies in all respects with the requirements of chapter 3.]

[In the case of ships of less than 400 gross tonnage, the Administration may establish appropriate measures in order to ensure that the applicable provisions of chapter 3 are complied with.]

Surveys of ships as regards the enforcement of the provisions of this Annex shall be carried out by officers of the Administration.

1: The Administration may, however, entrust the surveys either to surveyors nominated for the purpose or to organizations recognized by it. Such organizations shall comply with the guidelines adopted by the Organization; ⁽²³⁸⁾
2: The survey of marine diesel engines and equipment for compliance with regulation 13 of this Annex shall be conducted in accordance with the revised NOx Technical Code 2008;
3: When a nominated surveyor or recognized organization determines that the condition of the equipment does not correspond substantially with the particulars of the certificate, they shall ensure that corrective action is taken and shall in due course notify the Administration. If such corrective action is not taken, the certificate shall be withdrawn by the Administration. If the ship is in a port of another Party, the appropriate authorities of the port State shall also be notified immediately. When an officer of the Administration, a nominated surveyor or recognized organization has notified the appropriate authorities of the port State, the Government of the port State concerned shall give such officer, surveyor or organization any necessary assistance to carry out their obligations under this regulation; and
4: In every case, the Administration concerned shall fully guarantee the completeness and efficiency of the survey and shall undertake to ensure the necessary arrangements to satisfy this obligation.

Ships to which chapter 4 applies shall also be subject to the surveys specified below, taking into account Guidelines adopted by the Organization:

1: An initial survey before a new ship is put in service and before the International Energy Efficiency Certificate is issued. The survey shall verify that the ship's attained EEDI is in accordance with the requirements in chapter 4, and that the SEEMP required by regulation 22 is on board;
2: A general or partial survey, according to the circumstances, after a major conversion of [a new ship] to which this regulation applies. The survey shall ensure that the attained EEDI is recalculated as necessary and meets the requirement of regulation 21, with the reduction factor applicable to the ship type and size of the converted ship in the phase corresponding to the date of contract or keel laying or delivery determined for the original ship in accordance with regulation 2.23;
3: In cases where the major conversion of a new or existing ship is so extensive that the ship is regarded by the Administration as a newly constructed ship, the Administration shall determine the necessity of an initial survey on attained EEDI. Such a survey, if determined necessary, shall ensure that the attained EEDI is calculated and meets the requirement of regulation 21, with the reduction factor applicable corresponding to the ship type and size of the converted ship at the date of the contract of the conversion, or in the absence of a contract, the commencement date of the conversion. The survey shall also verify that the SEEMP required by regulation 22 is on board [and for a ship to which regulation 22A applies, has been revised appropriately to reflect a major conversion in those cases where the major conversion affects data collection methodology and/or reporting processes]; [...]
4: For existing ships, the verification of the requirement to have a SEEMP on board according to regulation 22 shall take place at the first intermediate or renewal survey identified in paragraph 1 of this regulation, whichever is the first, on or after 1 January 2013[; and]]
[5: The Administration shall ensure that for each ship to which regulation 22A applies, the SEEMP complies with regulation 22.2 of this Annex. This shall be done prior to collecting data under regulation 22A of this Annex in order to ensure the methodology and processes are in place prior to the beginning of the ship's first reporting period. Confirmation of compliance shall be provided to and retained on board the ship.]

[5]

The equipment shall be maintained to conform with the provisions of this Annex and no changes shall be made in the equipment, systems, fittings, arrangements, or material covered by the survey, without the express approval of the Administration. The direct replacement of such equipment and fittings with equipment and fittings that conform with the provisions of this Annex is permitted.

[6]

Whenever an accident occurs to a ship or a defect is discovered which substantially affects the efficiency or completeness of its equipment covered by this Annex, the master or owner of the ship shall report at the earliest opportunity to the Administration, a nominated surveyor, or recognized organization responsible for issuing the relevant certificate.

⁽²³⁸⁾

Refer to the Guidelines for the authorization of organizations acting on behalf of the Administration, adopted by the Organization by resolution A.739(18), as may be amended by the Organization, and the Specifications on the survey and certification functions of recognized organizations acting on behalf of the Administration, adopted by the Organization by resolution A.789(19), as may be amended by the Organization.

Wetshistoriek

1 vervangen bij Res. MEPC.203(62), corr., 26 september 2011, met ingang van 1 januari 2013.

2 vervangen bij Res. MEPC.203(62), met ingang van 1 januari 2013.

4 ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

4.2 gewijzigd bij Res. MEPC.251(66), met ingang van 1 september 2015.

4.3 en 4.4 gewijzigd en 4.5 ingevoegd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Paragraaf 5 vernummerd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Paragraaf 6 vernummerd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Regulation 6 Issue or endorsement of Certificates and Statements of Compliance related to fuel oil consumption reporting

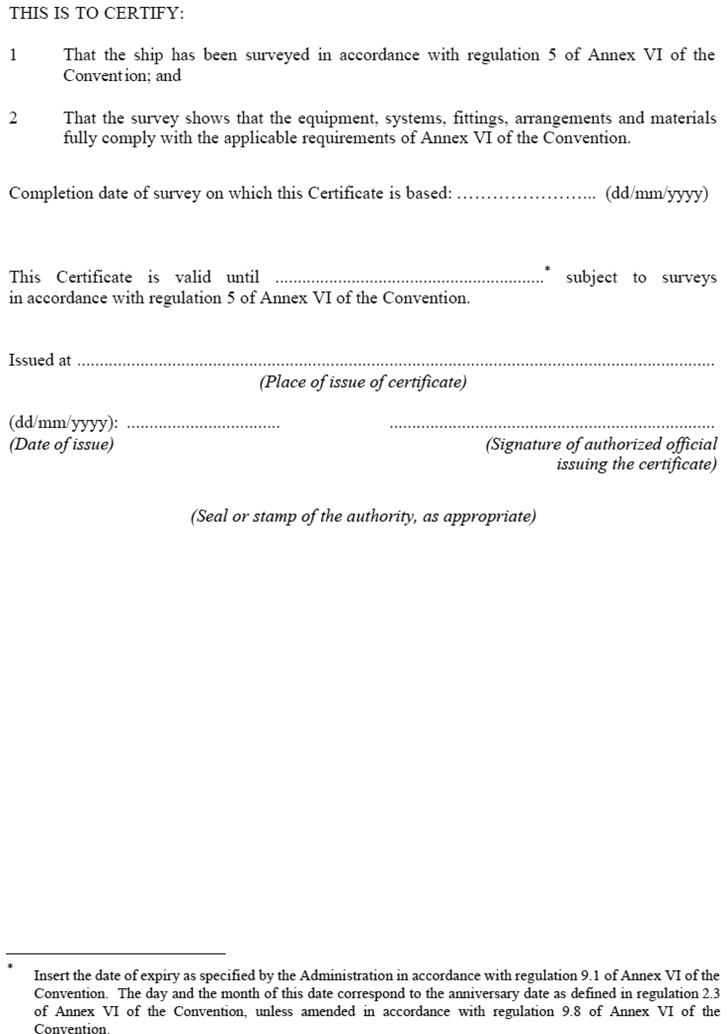

[International Air Pollution Prevention Certificate]

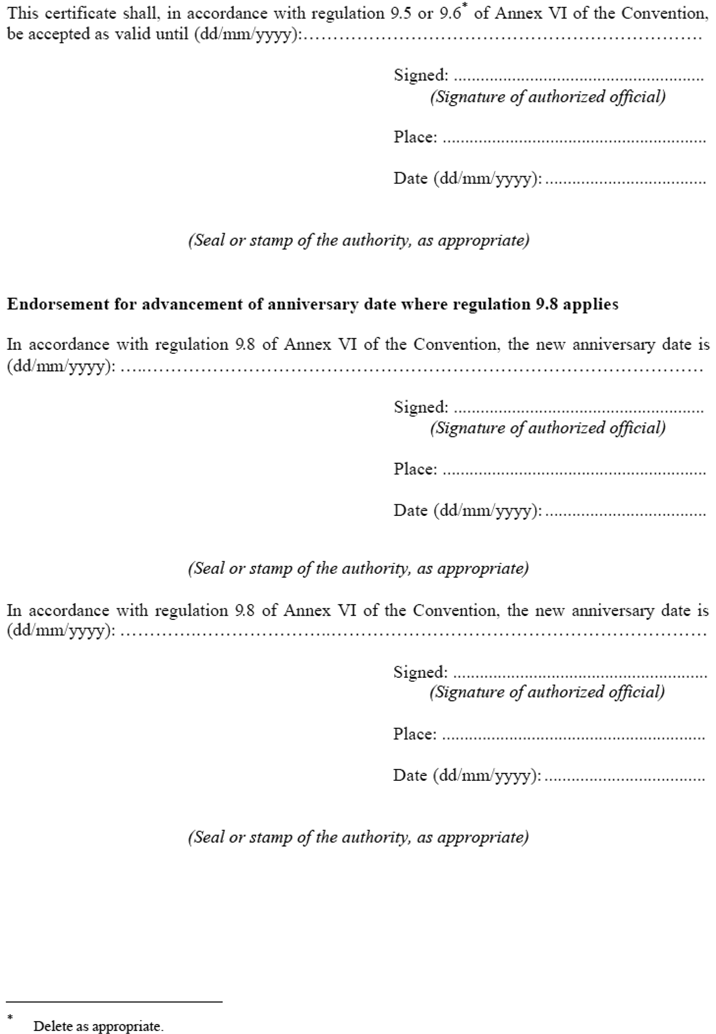

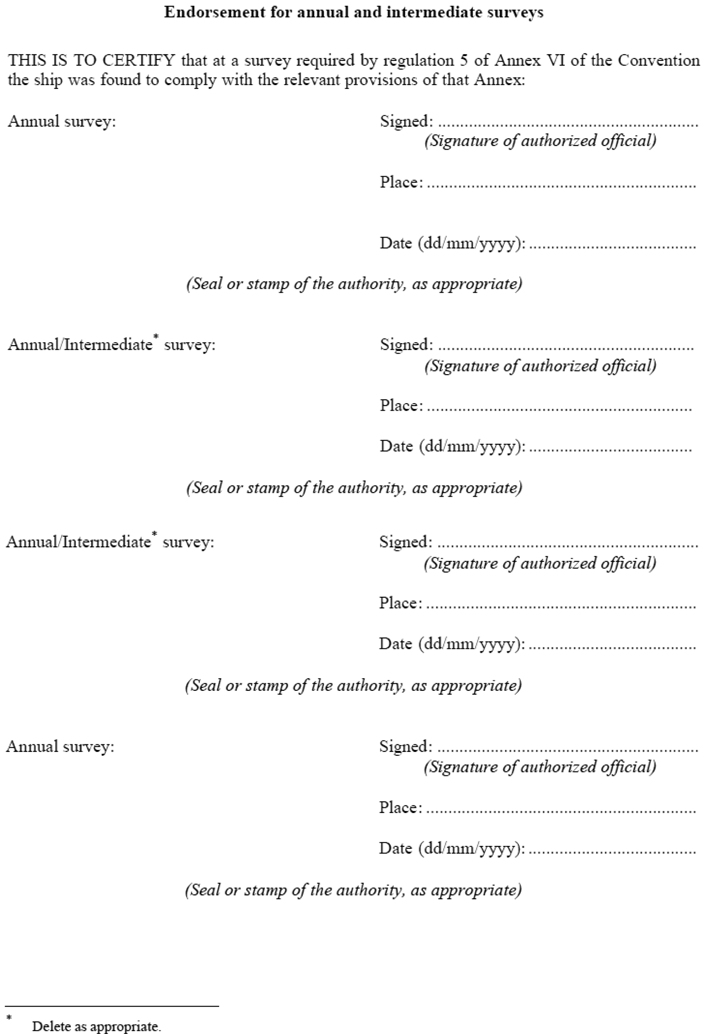

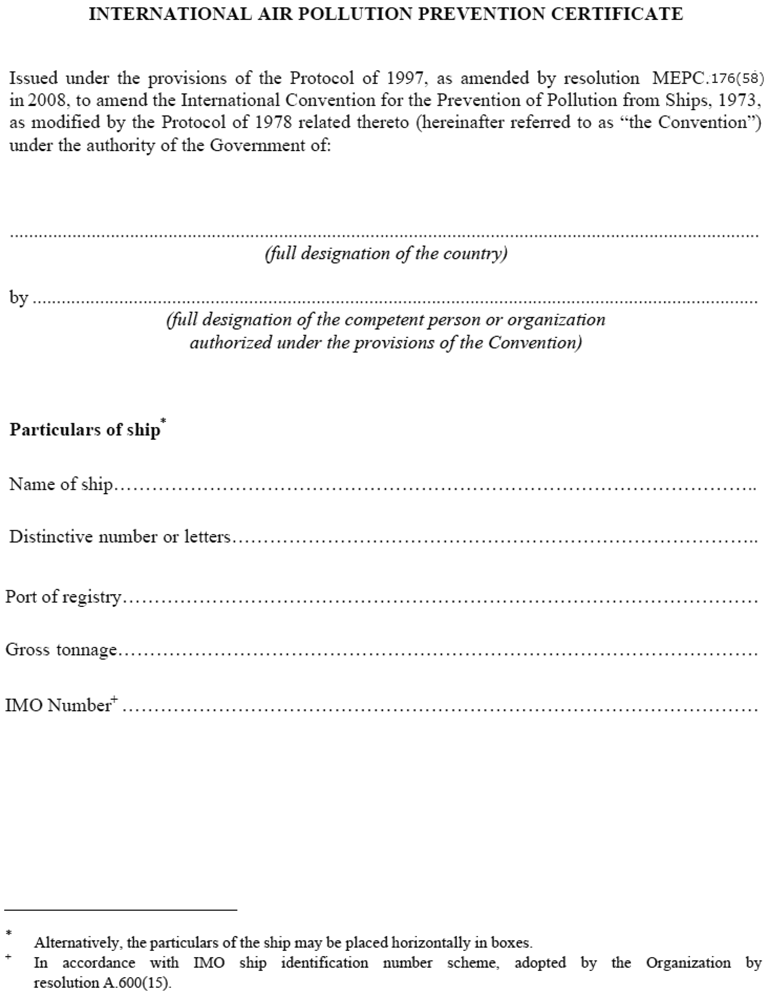

An International Air Pollution Prevention Certificate shall be issued, after an initial or renewal survey in accordance with the provisions of regulation 5 of this Annex, to:

1: any ship of 400 gross tonnage and above engaged in voyages to ports or offshore terminals under the jurisdiction of other Parties; and
2: platforms and drilling rigs engaged in voyages to waters under the sovereignty or jurisdiction of other Parties.

[A ship constructed before the date Annex VI enters into force for that particular ship's Administration, shall be issued with an International Air Pollution Prevention Certificate in accordance with paragraph 1 of this regulation no later than the first scheduled dry-docking after the date of such entry into force, but in no case later than three years after this date.]

Such certificate shall be issued or endorsed either by the Administration or by any person or organization duly authorized by it. In every case, the Administration assumes full responsibility for the certificate.

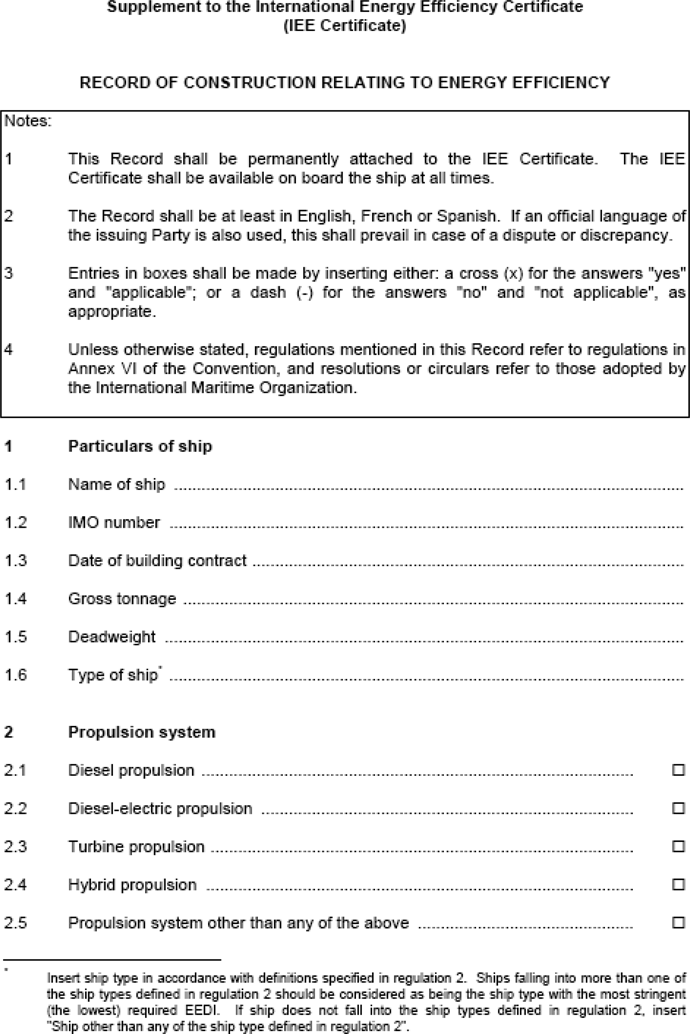

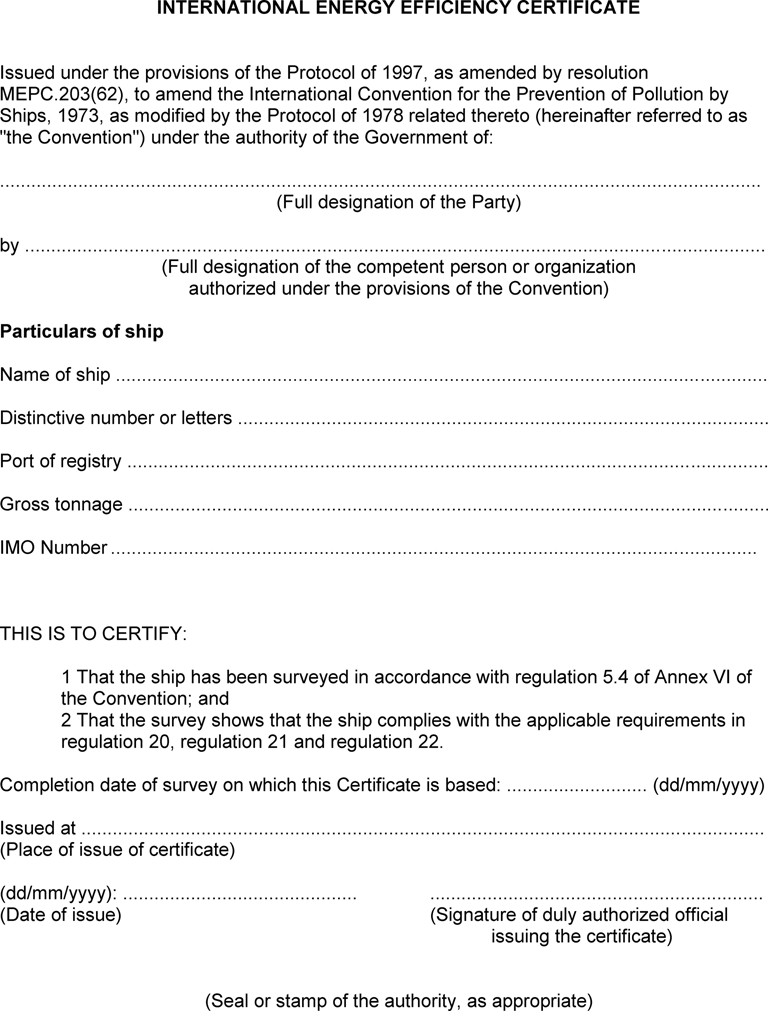

[International Energy Efficiency Certificate]

An International Energy Efficiency Certificate for the ship shall be issued after a survey in accordance with the provisions of regulation 5.4 to any ship of 400 gross tonnage and above before that ship may engage in voyages to ports or offshore terminals under the jurisdiction of other Parties.]

The certificate shall be issued or endorsed either by the Administration or any organization duly authorized by it. In every case, the Administration assumes full responsibility for the certificate.]

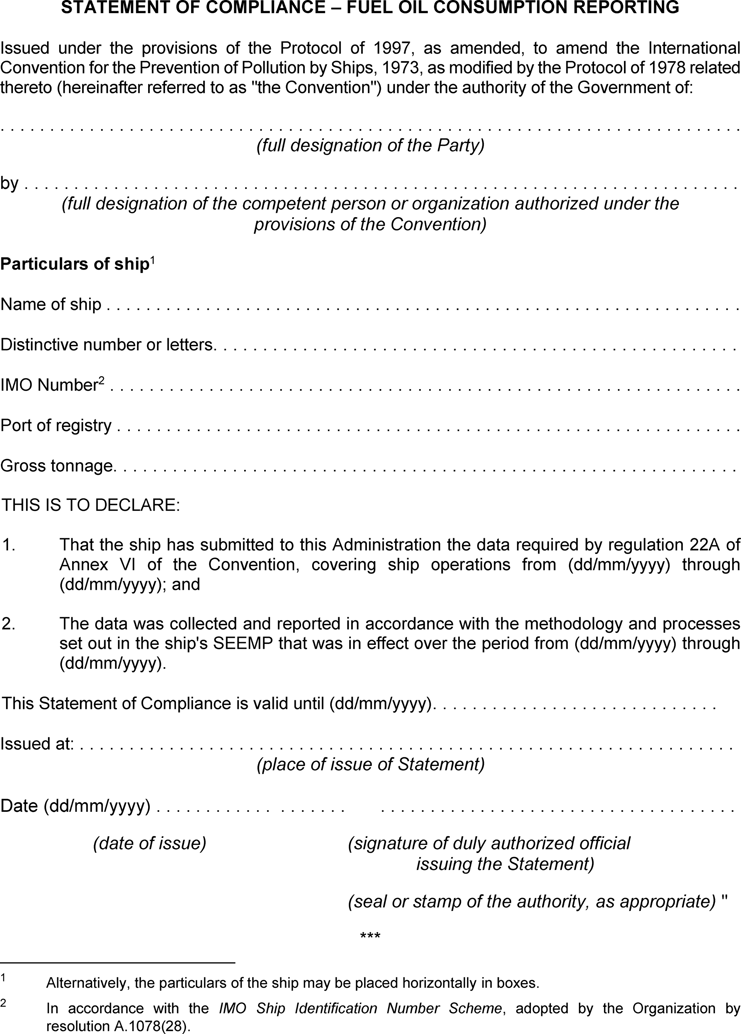

[Statement of Compliance – Fuel Oil Consumption Reporting

Upon receipt of reported data pursuant to regulation 22A.3 of this Annex, the Administration or any organization duly authorized by it ⁽²⁴¹⁾ shall determine whether the data has been reported in accordance with regulation 22A of this Annex and, if so, issue a Statement of Compliance related to fuel oil consumption to the ship no later than five months from the beginning of the calendar year. In every case, the Administration assumes full responsibility for this Statement of Compliance.

Upon receipt of reported data pursuant to regulations 22A.4, 22A.5 or 22A.6 of this Annex, the Administration or any organization duly authorized by it ⁽²⁴²⁾ shall promptly determine whether the data has been reported in accordance with regulation 22A and, if so, issue a Statement of Compliance related to fuel oil consumption to the ship at that time. In every case, the Administration assumes full responsibility for this Statement of Compliance.]

⁽²⁴¹⁾

⁽²⁴²⁾

Wetshistoriek

Gewijzigd bij Res. MEPC.203(62), met ingang van 1 januari 2013 en bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Regulation 7 Issue of a Certificate by another Party

[A Party may, at the request of the Administration, cause a ship to be surveyed and, if satisfied that the applicable provisions of this Annex are complied with, shall issue or authorize the issuance of an International Air Pollution Prevention Certificate or an International Energy Efficiency Certificate to the ship, and where appropriate, endorse or authorize the endorsement of such certificates on the ship, in accordance with this Annex.]

A copy of the certificate and a copy of the survey report shall be transmitted as soon as possible to the requesting Administration.

A certificate so issued shall contain a statement to the effect that it has been issued at the request of the Administration and it shall have the same force and receive the same recognition as a certificate issued under regulation 6 of this Annex.

[No International Air Pollution Prevention Certificate or International Energy Efficiency Certificate shall be issued to a ship which is entitled to fly the flag of a State which is not a Party.]

Wetshistoriek

1 vervangen bij Res. MEPC.203(62), met ingang van 1 januari 2013.

4 vervangen bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Regulation 8 Form of Certificates and Statements of Compliance related to fuel oil consumption reporting

[1] [International Air Pollution Prevention Certificate]

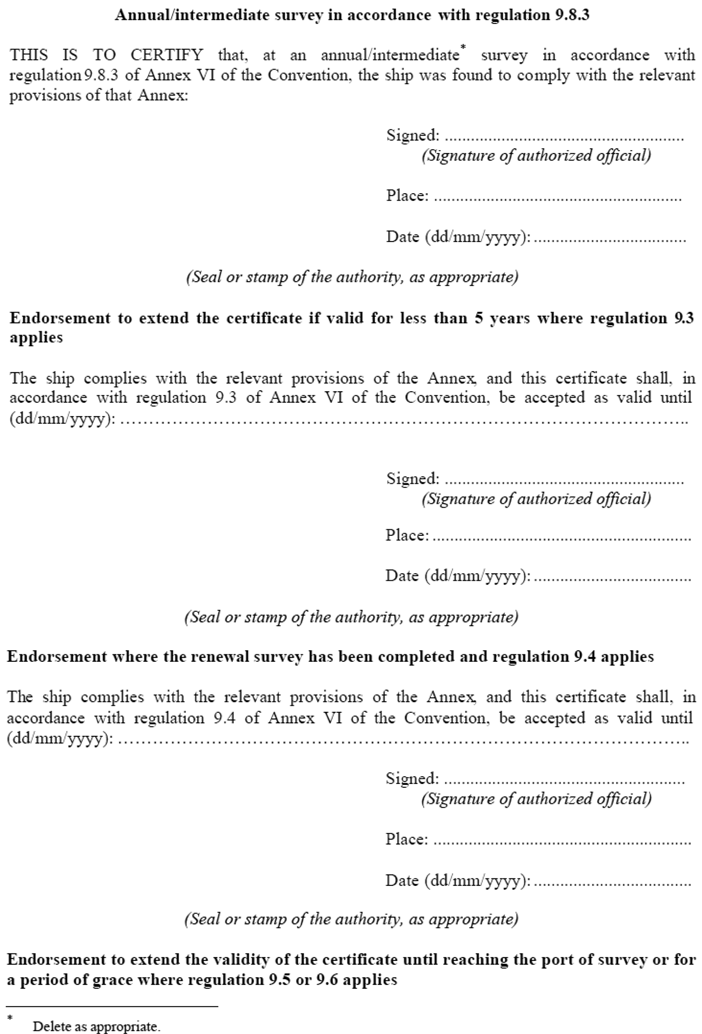

The International Air Pollution Prevention Certificate shall be drawn up in a form corresponding to the model given in appendix I to this Annex and shall be at least in English, French or Spanish. If an official language of the issuing country is also used, this shall prevail in case of a dispute or discrepancy.

[2 International Energy Efficiency Certificate

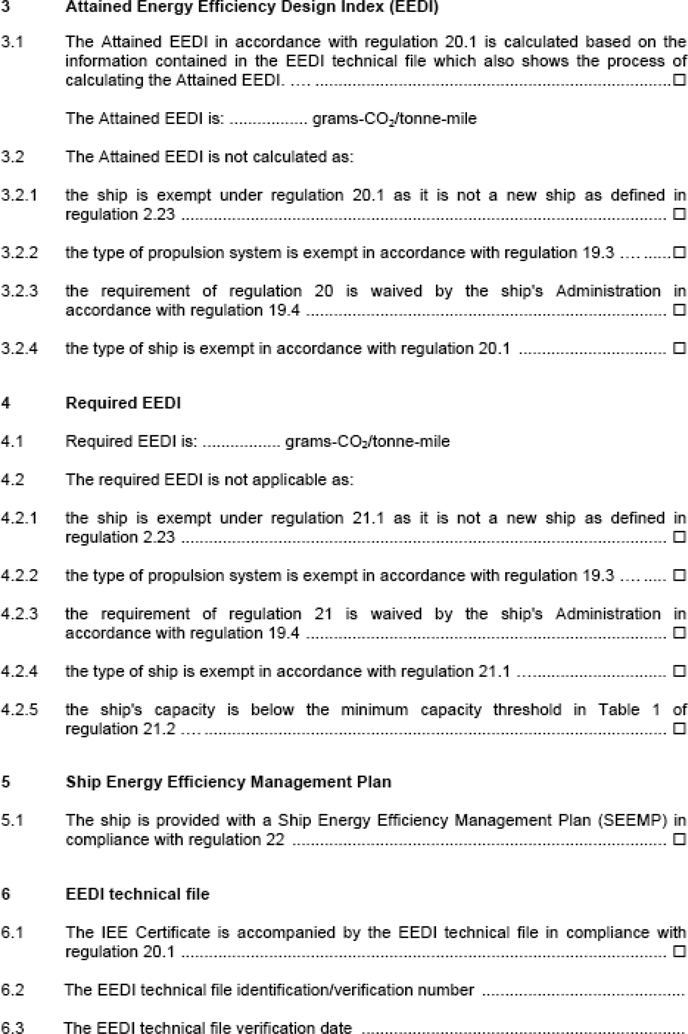

The International Energy Efficiency Certificate shall be drawn up in a form corresponding to the model given in appendix VIII to this Annex and shall be at least in English, French or Spanish. If an official language of the issuing Party is also used, this shall prevail in case of a dispute or discrepancy.]

[3 Statement of Compliance – Fuel Oil Consumption Reporting

The Statement of Compliance pursuant to regulations 6.6 and 6.7 of this Annex shall be drawn up in a form corresponding to the model given in appendix X to this Annex and shall be at least in English, French or Spanish. If an official language of the issuing Party is also used, this shall prevail in case of a dispute or discrepancy.]

Wetshistoriek

Opschrift vervangen bij Res. MEPC.203(62), met ingang van 1 januari 2013 en gewijzigd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

1 genummerd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

2 ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

3 ingevoegd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Regulation 9 Duration and Validity of Certificates and Statements of Compliance related to fuel oil consumption reporting

[International Air Pollution Prevention Certificate]

An International Air Pollution Prevention Certificate shall be issued for a period specified by the Administration, which shall not exceed five years.

Notwithstanding the requirements of paragraph 1 of this regulation:

1: when the renewal survey is completed within three months before the expiry date of the existing certificate, the new certificate shall be valid from the date of completion of the renewal survey to a date not exceeding five years from the date of expiry of the existing certificate;
2: when the renewal survey is completed after the expiry date of the existing certificate, the new certificate shall be valid from the date of completion of the renewal survey to a date not exceeding five years from the date of expiry of the existing certificate; and
3: when the renewal survey is completed more than three months before the expiry date of the existing certificate, the new certificate shall be valid from the date of completion of the renewal survey to a date not exceeding five years from the date of completion of the renewal survey.

If a certificate is issued for a period of less than five years, the Administration may extend the validity of the certificate beyond the expiry date to the maximum period specified in paragraph 1 of this regulation, provided that the surveys referred to in regulations 5.1.3 and 5.1.4 of this Annex applicable when a certificate is issued for a period of five years are carried out as appropriate.

If a renewal survey has been completed and a new certificate cannot be issued or placed on board the ship before the expiry date of the existing certificate, the person or organization authorized by the Administration may endorse the existing certificate and such a certificate shall be accepted as valid for a further period which shall not exceed five months from the expiry date.

If a ship, at the time when a certificate expires, is not in a port in which it is to be surveyed, the Administration may extend the period of validity of the certificate but this extension shall be granted only for the purpose of allowing the ship to complete its voyage to the port in which it is to be surveyed, and then only in cases where it appears proper and reasonable to do so. No certificate shall be extended for a period longer than three months, and a ship to which an extension is granted shall not, on its arrival in the port in which it is to be surveyed, be entitled by virtue of such extension to leave that port without having a new certificate. When the renewal survey is completed, the new certificate shall be valid to a date not exceeding five years from the date of expiry of the existing certificate before the extension was granted.

A certificate issued to a ship engaged on short voyages which has not been extended under the foregoing provisions of this regulation may be extended by the Administration for a period of grace of up to one month from the date of expiry stated on it. When the renewal survey is completed, the new certificate shall be valid to a date not exceeding five years from the date of expiry of the existing certificate before the extension was granted.

In special circumstances, as determined by the Administration, a new certificate need not be dated from the date of expiry of the existing certificate as required by paragraph 2.1, 5 or 6 of this regulation. In these special circumstances, the new certificate shall be valid to a date not exceeding five years from the date of completion of the renewal survey.

If an annual or intermediate survey is completed before the period specified in regulation 5 of this Annex, then:

1: the anniversary date shown on the certificate shall be amended by endorsement to a date which shall not be more than three months later than the date on which the survey was completed;
2: the subsequent annual or intermediate survey required by regulation 5 of this Annex shall be completed at the intervals prescribed by that regulation using the new anniversary date; and
3: the expiry date may remain unchanged provided one or more annual or intermediate surveys, as appropriate, are carried out so that the maximum intervals between the surveys prescribed by regulation 5 of this Annex are not exceeded.

A certificate issued under regulation 6 or 7 of this Annex shall cease to be valid in any of the following cases:

1: if the relevant surveys are not completed within the periods specified under regulation 5.1 of this Annex;
2: if the certificate is not endorsed in accordance with regulation 5.1.3 or 5.1.4 of this Annex; and
3: upon transfer of the ship to the flag of another State. A new certificate shall only be issued when the Government issuing the new certificate is fully satisfied that the ship is in compliance with the requirements of regulation 5.4 of this Annex. In the case of a transfer between Parties, if requested within three months after the transfer has taken place, the Government of the Party whose flag the ship was formerly entitled to fly shall, as soon as possible, transmit to the Administration copies of the certificate carried by the ship before the transfer and, if available, copies of the relevant survey reports.

[International Energy Efficiency Certificate

The International Energy Efficiency Certificate shall be valid throughout the life of the ship subject to the provisions of paragraph 11 below.

An International Energy Efficiency Certificate issued under this Annex shall cease to be valid in any of the following cases:

1: if the ship is withdrawn from service or if a new certificate is issued following major conversion of the ship; or
2: certificate shall only be issued when the Government issuing the new certificate is fully satisfied that the ship is in compliance with the requirements of chapter 4. In the case of a transfer between Parties, if requested within three months after the transfer has taken place, the Government of the Party whose flag the ship was formerly entitled to fly shall, as soon as possible, transmit to the Administration copies of the certificate carried by the ship before the transfer and, if available, copies of the relevant survey reports.]

[Statement of Compliance – Fuel Oil Consumption Reporting

The Statement of Compliance pursuant to regulation 6.6 of this Annex shall be valid for the calendar year in which it is issued and for the first five months of the following calendar year. The Statement of Compliance pursuant to regulation 6.7 of this Annex shall be valid for the calendar year in which it is issued, for the following calendar year, and for the first five months of the subsequent calendar year. All Statements of Compliance shall be kept on board for at least the period of their validity.]

Wetshistoriek

Opschrift vervangen bij Res. MEPC.203(62), met ingang van 1 januari 2013 en gewijzigd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Opschrift deel 1 (par. 1-9) ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Deel 2 (par. 10-11) ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Deel 3 (par. 12) ingevoegd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Regulation 10 Port State Control on Operational Requirements

A ship, when in a port or an offshore terminal under the jurisdiction of another Party, is subject to inspection by officers duly authorized by such Party concerning operational requirements under this Annex, where there are clear grounds for believing that the master or crew are not familiar with essential shipboard procedures relating to the prevention of air pollution from ships.

In the circumstances given in paragraph 1 of this regulation, the Party shall take such steps as to ensure that the ship shall not sail until the situation has been brought to order in accordance with the requirements of this Annex.

Procedures relating to the port State control prescribed in article 5 of the present Convention shall apply to this regulation.

Nothing in this regulation shall be construed to limit the rights and obligations of a Party carrying out control over operational requirements specifically provided for in the present Convention.

In relation to chapter 4, any port State inspection shall be limited to verifying, when appropriate, that there is a valid [Statement of Compliance related to fuel oil consumption reporting and] International Energy Efficiency Certificate on board, in accordance with article 5 of the Convention.]

Wetshistoriek

5 ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013 en gewijzigd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Regulation 11 Detection of Violations and Enforcement

Parties shall co-operate in the detection of violations and the enforcement of the provisions of this Annex, using all appropriate and practicable measures of detection and environmental monitoring, adequate procedures for reporting and accumulation of evidence.

A ship to which this Annex applies may, in any port or offshore terminal of a Party, be subject to inspection by officers appointed or authorized by that Party for the purpose of verifying whether the ship has emitted any of the substances covered by this Annex in violation of the provision of this Annex. If an inspection indicates a violation of this Annex, a report shall be forwarded to the Administration for any appropriate action.

Any Party shall furnish to the Administration evidence, if any, that the ship has emitted any of the substances covered by this Annex in violation of the provisions of this Annex. If it is practicable to do so, the competent authority of the former Party shall notify the master of the ship of the alleged violation.

Upon receiving such evidence, the Administration so informed shall investigate the matter, and may request the other Party to furnish further or better evidence of the alleged contravention. If the Administration is satisfied that sufficient evidence is available to enable proceedings to be brought in respect of the alleged violation, it shall cause such proceedings to be taken in accordance with its law as soon as possible. The Administration shall promptly inform the Party which has reported the alleged violation, as well as the Organization, of the action taken.

A Party may also inspect a ship to which this Annex applies when it enters the ports or offshore terminals under its jurisdiction, if a request for an investigation is received from any Party together with sufficient evidence that the ship has emitted any of the substances covered by the Annex in any place in violation of this Annex. The report of such investigation shall be sent to the Party requesting it and to the Administration so that the appropriate action may be taken under the present Convention.

The international law concerning the prevention, reduction, and control of pollution of the marine environment from ships, including that law relating to enforcement and safeguards, in force at the time of application or interpretation of this Annex, applies, mutatis mutandis, to the rules and standards set forth in this Annex.

Chapter III Requirements for control of emissions from ships

Regulation 12 Ozone Depleting Substances

This regulation does not apply to permanently sealed equipment where there are no refrigerant charging connections or potentially removable components containing ozone depleting substances.

Subject to the provisions of regulation 3.1, any deliberate emissions of ozone depleting substances shall be prohibited. Deliberate emissions include emissions occurring in the course of maintaining, servicing, repairing or disposing of systems or equipment, except that deliberate emissions do not include minimal releases associated with the recapture or recycling of an ozone depleting substance. Emissions arising from leaks of an ozone depleting substance, whether or not the leaks are deliberate, may be regulated by Parties.

3.1

Installations which contain ozone depleting substances, other than hydro chlorofluorocarbons, shall be prohibited:

1: on ships constructed on or after 19 May 2005; or
2: in the case of ships constructed before 19 May 2005, which have a contractual delivery date of the equipment to the ship on or after 19 May 2005 or, in the absence of a contractual delivery date, the actual delivery of the equipment to the ship on or after 19 May 2005.

3.2

Installations which contain hydro-chlorofluorocarbons shall be prohibited:

1: on ships constructed on or after 1 January 2020; or
2: in the case of ships constructed before 1 January 2020, which have a contractual delivery date of the equipment to the ship on or after 1 January 2020 or, in the absence of a contractual delivery date, the actual delivery of the equipment to the ship on or after 1 January 2020.

The substances referred to in this regulation, and equipment containing such substances, shall be delivered to appropriate reception facilities when removed from ships.

Each ship subject to regulation 6.1 shall maintain a list of equipment containing ozone depleting substances. ⁽²⁴⁷⁾

Each ship subject to regulation 6.1 which has rechargeable systems that contain ozone depleting substances shall maintain an Ozone Depleting Substances Record Book. This Record Book may form part of an existing log-book or electronic [record book ⁽²⁴⁸⁾ ] as approved by the Administration. [An electronic recording system referred to in regulation 12.6, as adopted by resolution MEPC.176(58), shall be considered an electronic record book, provided the electronic recording system is approved by the Administration on or before the first International Air Pollution Prevention (IAPP) Certificate renewal survey carried out on or after 1 October 2020, but not later than 1 October 2025, taking into account the Guidelines developed by the Organization ⁽²⁴⁹⁾ .]

Entries in the Ozone Depleting Substances Record Book shall be recorded in terms of mass (kg) of substance and shall be completed without delay on each occasion, in respect of the following:

1

recharge, full or partial, of equipment containing ozone depleting substances;

2

repair or maintenance of equipment containing ozone depleting substances;

3

discharge of ozone depleting substances to the atmosphere:

3.1: deliberate; and
3.2: non-deliberate;

4

discharge of ozone depleting substances to land-based reception facilities; and

5

supply of ozone depleting substances to the ship.

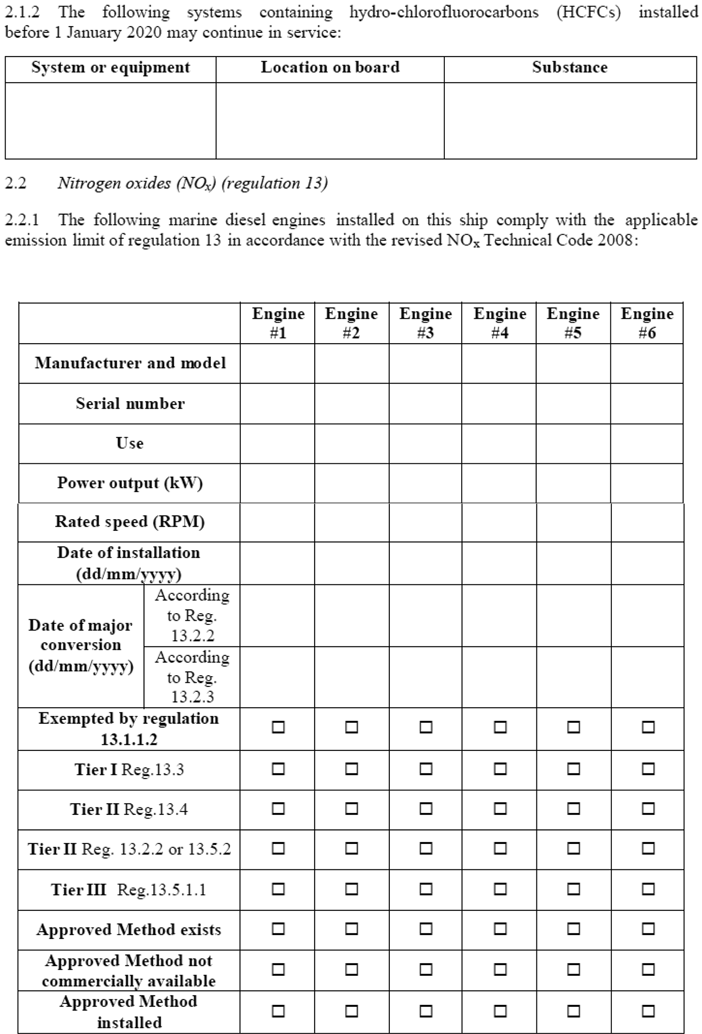

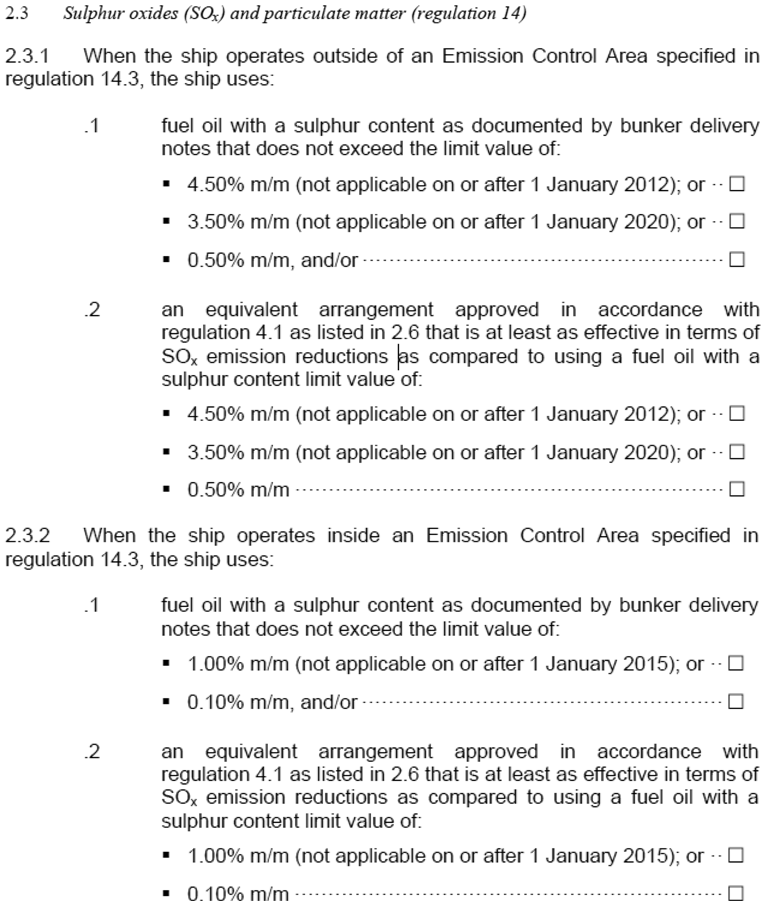

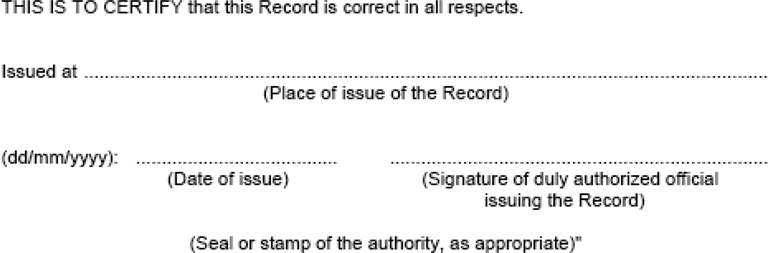

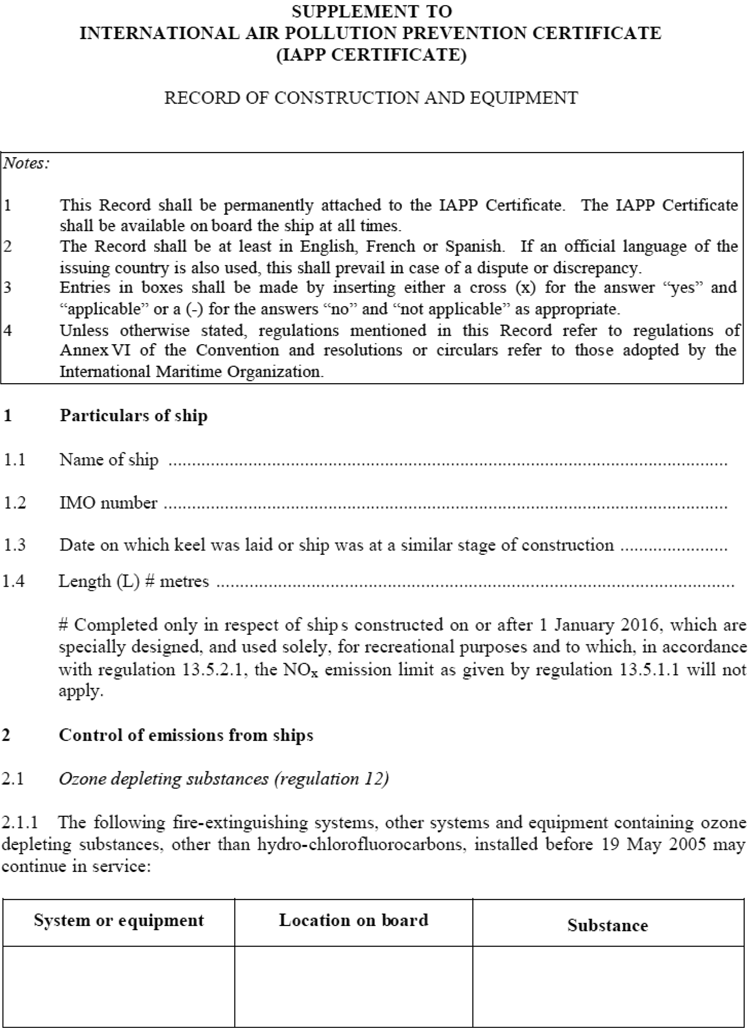

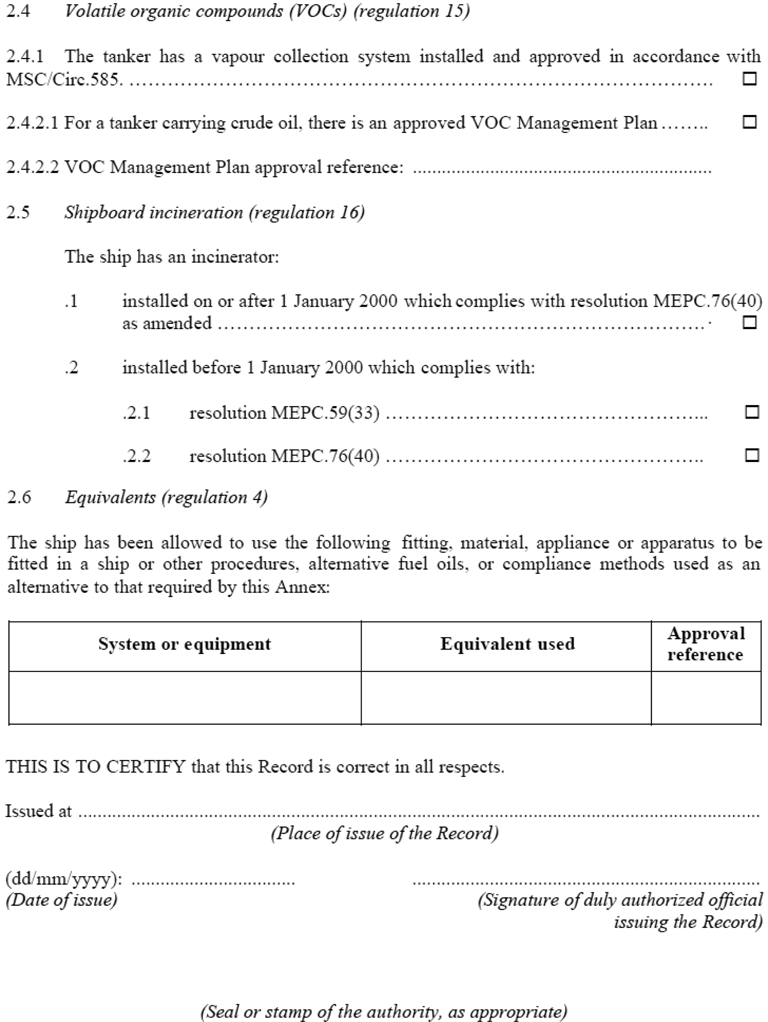

⁽²⁴⁷⁾	See Appendix I, Supplement to International Air Pollution Prevention Certificate (IAPP Certificate), section 2.1.
⁽²⁴⁸⁾	Refer to the Guidelines for the use of electronic record books under MARPOL, adopted by resolution MEP.312(74)
⁽²⁴⁹⁾	Refer to the Guidelines for the use of electronic record books under MARPOL, adopted by resolution MEP.312(74)

Wetshistoriek

6 gewijzigd bij Res. MEPC.316(74), met ingang van 1 oktober 2020.

Regulation 13 Nitrogen Oxides (NOx)

Application

1.1

This regulation shall apply to:

1: each marine diesel engine with a power output of more than 130 kW installed on a ship; and
2: each marine diesel engine with a power output of more than 130 kW which undergoes a major conversion on or after 1 January 2000 except when demonstrated to the satisfaction of the Administration that such engine is an identical replacement to the engine which it is replacing and is otherwise not covered under paragraph 1.1.1 of this regulation.

1.2

This regulation does not apply to:

1: a marine diesel engine intended to be used solely for emergencies, or solely to power any device or equipment intended to be used solely for emergencies on the ship on which it is installed, or a marine diesel engine installed in lifeboats intended to be used solely for emergencies; and
2: a marine diesel engine installed on a ship solely engaged in voyages within waters subject to the sovereignty or jurisdiction of the State the flag of which the ship is entitled to fly, provided that such engine is subject to an alternative NO_x control measure established by the Administration.

1.3

Notwithstanding the provisions of subparagraph 1.1 of this paragraph, the Administration may provide an exclusion from the application of this regulation for any marine diesel engine which is installed on a ship constructed, or for any marine diesel engine which undergoes a major conversion, before 19 May 2005, provided that the ship on which the engine is installed is solely engaged in voyages to ports or offshore terminals within the State the flag of which the ship is entitled to fly.

Major Conversion

2.1

For the purpose of this regulation, major conversion means a modification on or after 1 January 2000 of a marine diesel engine that has not already been certified to the standards set forth in paragraph 3, 4, or 5.1.1 of this regulation where:

1: the engine is replaced by a marine diesel engine or an additional marine diesel engine is installed, or
2: any substantial modification, as defined in the revised NOx Technical Code 2008, is made to the engine, or
3: the maximum continuous rating of the engine is increased by more than 10 % compared to the maximum continuous rating of the original certification of the engine.

2.2 [

For a major conversion involving the replacement of a marine diesel engine with a non-identical marine diesel engine, or the installation of an additional marine diesel engine, the standards in this regulation at the time of the replacement or addition of the engine shall apply. In the case of replacement engines only, if it is not possible for such a replacement engine to meet the standards set forth in paragraph 5.1.1 of this regulation (Tier III), then that replacement engine shall meet the standards set forth in paragraph 4 of this regulation (Tier II), taking into account guidelines developed by the Organization ⁽²⁵⁶⁾ .

]

2.3

A marine diesel engine referred to in paragraph 2.1.2 or 2.1.3 shall meet the following standards:

1: for ships constructed prior to 1 January 2000, the standards set forth in paragraph 3 of this regulation shall apply; and
2: for ships constructed on or after 1 January 2000, the standards in force at the time the ship was constructed shall apply.

Tier I

Subject to regulation 3 of this Annex, the operation of a marine diesel engine which is installed on a ship constructed on or after 1 January 2000 and prior to 1 January 2011 is prohibited, except when the emission of nitrogen oxides (calculated as the total weighted emission of NO₂) from the engine is within the following limits, where n = rated engine speed (crankshaft revolutions per minute):

1: 17.0 g/kWh when n is less than 130 rpm;
2: 45 · n^(-0.2) g/kWh when n is 130 or more but less than 2000 rpm;
3: 9.8 g/kWh when n is 2000 rpm or more.

Tier II

Subject to regulation 3 of this Annex, the operation of a marine diesel engine which is installed on a ship constructed on or after 1 January 2011 is prohibited, except when the emission of nitrogen oxides (calculated as the total weighted emission of NO₂) from the engine is within the following limits, where n = rated engine speed (crankshaft revolutions per minute):

1: 14.4 g/kWh when n is less than 130 rpm;
2: 44 · n^(-0.23) g/kWh when n is 130 or more but less than 2000 rpm;
3: 7.7 g/kWh when n is 2000 rpm or more.

[Tier III

5.1

Subject to regulation 3 of this Annex, in an emission control area designated for Tier III NO_x control under paragraph 6 of this regulation [(NO_x Tier III emission control area)], the operation of a marine diesel engine that is installed on a ship:

.1

is prohibited except when the emission of nitrogen oxides (calculated as the total weighted emission of [NO_x]) from the engine is within the following limits, where n = rated engine speed (crankshaft revolutions per minute):

.1: 3.4 g/kWh when n is less than 130 rpm;
.2: 9 · n^(-0.2) g/kWh when n is 130 or more but less than 2000 rpm;
.3: 2.0 g/kWh when n is 2,000 rpm or more;

when:

.2

[that ship is constructed on or after:

.1: 1 January 2016 and is operating in the North American Emission Control Area or the United States Caribbean Sea Emission Control Area;
.2: 1 January 2021 and is operating in the Baltic Sea Emission Control Area or the North Sea Emission Control Area;

]

.3

that ship is operating in [NO_x Tier III emission control area], other than an emission control area described in paragraph 5.1.2 of this regulation, and is constructed on or after the date of adoption of such an emission control area, or a later date as may be specified in the amendment designating the NO_x Tier III emission control area, whichever is later.

5.2

The standards set forth in paragraph 5.1.1 of this regulation shall not apply to:

.1: a marine diesel engine installed on a ship with a length (L), as defined in regulation 1.19 of Annex I to the present Convention, less than 24 metres when it has been specifically designed, and is used solely, for recreational purposes; or
.2: a marine diesel engine installed on a ship with a combined nameplate diesel engine propulsion power of less than 750 kW if it is demonstrated, to the satisfaction of the Administration, that the ship cannot comply with the standards set forth in paragraph 5.1.1 of this regulation because of design or construction limitations of the ship; or
3: a marine diesel engine installed on a ship constructed prior to 1 January 2021 of less than 500 gross tonnage, with a length (L), as defined in regulation 1.19 of Annex I to the present [Convention], of [24 metres] or over when it has been specifically designed, and is used solely, for recreational purposes.

][

5.3

The tier and on/off status of marine diesel engines installed on board a ship to which paragraph 5.1 of this regulation applies which are certified to both Tier II and Tier III or which are certified to Tier II only shall be recorded in such logbook [or electronic record book ⁽²⁵⁷⁾ ,] as prescribed by the Administration at entry into and exit from [a NO_x Tier III emission control area], or when the on/off status changes within such an area, together with the date, time and position of the ship.

]

[5.4

Emissions of nitrogen oxides from a marine diesel engine subject to paragraph 5.1 of this regulation that occur immediately following building and sea trials of a newly constructed ship, or before and following converting, repairing, and/or maintaining the ship, or maintenance or repair of a Tier II engine or a dual fuel engine when the ship is required to not have gas fuel or gas cargo on board due to safety requirements, for which activities take place in a shipyard or other repair facility located in a NO_x Tier III emission control area are temporarily exempted provided the following conditions are met:

.1: the engine meets the Tier II NO_x limits; and
.2: the ship sails directly to or from the shipyard or other repair facility, does not load or unload cargo during the duration of the exemption, and follows any additional specific routing requirements indicated by the port State in which the shipyard or other repair facility is located, if applicable.

]

[5.5

The exemption described in paragraph 5.4 of this regulation applies only for the following period:

.1: for a newly constructed ship, the period beginning at the time the ship is delivered from the shipyard, including sea trials, and ending at the time the ship directly exits the NO_x Tier III emission control area(s) or, with regard to a ship fitted with a dual fuel engine, the ship directly exits the NO_x Tier III emission control area(s) or proceeds directly to the nearest gas fuel bunkering facility appropriate to the ship located in the NO_x Tier III emission control area(s);
.2: for a ship with a Tier II engine undergoing conversion, maintenance or repair, the period beginning at the time the ship enters the NO_x Tier III emission control area(s) and proceeds directly to the shipyard or other repair facility, and ending at the time the ship is released from the shipyard or other repair facility and directly exits the NO_x Tier III emission control area(s) after performing sea trials, if applicable; or
.3: for a ship with a dual fuel engine undergoing conversion, maintenance or repair, when the ship is required to not have gas fuel or gas cargo on board due to safety requirements, the period beginning at the time the ship enters the NO_x Tier III emission control area(s) or when it is degassed in the NO_x Tier III emission control area(s) and proceeds directly to the shipyard or other repair facility, and ending at the time when the ship is released from the shipyard or other repair facility and directly exits the NO_x Tier III emission control area(s) or proceeds directly to the nearest gas fuel bunkering facility appropriate to the ship located in the NO_x Tier III emission control area(s).

]

Emission Control Area

[For the purposes of this regulation, a NO_x Tier III emission control area shall be any sea area, including any port area, designated by the Organization in accordance with the criteria and procedures set forth in appendix III to this Annex. The NO_x Tier III emission control areas are:

.1: the North American Emission Control Area, which means the area described by the coordinates provided in appendix VII to this Annex;
.2: the United States Caribbean Sea Emission Control Area, which means the area described by the coordinates provided in appendix VII to this Annex;
.3: the Baltic Sea Emission Control Area as defined in regulation 1.11.2 of Annex I of the present Convention; and
.4: the North Sea Emission Control Area as defined in regulation 1.14.6 of Annex V of the present Convention.]

Marine Diesel Engines Installed on a Ship Constructed Prior to 1 January 2000

7.1

Notwithstanding paragraph 1.1.1 of this regulation, a marine diesel engine with a power output of more than 5,000 kW and a per cylinder displacement at or above 90 litres installed on a ship constructed on or after 1 January 1990 but prior to 1 January 2000 shall comply with the emission limits set forth in subparagraph 7.4 of this paragraph, provided that an Approved Method for that engine has been certified by an Administration of a Party and notification of such certification has been submitted to the Organization by the certifying Administration. Compliance with this paragraph shall be demonstrated through one of the following:

1: installation of the certified Approved Method, as confirmed by a survey using the verification procedure specified in the Approved Method File, including appropriate notation on the ship's International Air Pollution Prevention Certificate of the presence of the Approved Method; or
2: certification of the engine confirming that it operates within the limits set forth in paragraph 3, 4, or 5.1.1 of this regulation and an appropriate notation of the engine certification on the ship's International Air Pollution Prevention Certificate.

7.2

Subparagraph 7.1 shall apply no later than the first renewal survey that occurs 12 months or more after deposit of the notification in subparagraph 7.1. If a shipowner of a ship on which an Approved Method is to be installed can demonstrate to the satisfaction of the Administration that the Approved Method was not commercially available despite best efforts to obtain it, then that Approved Method shall be installed on the ship no later than the next annual survey of that ship which falls after the Approved Method is commercially available.

7.3

[With regard to a marine diesel engine with a power output of more than 5,000 kW and a per cylinder displacement at or above 90 litres installed on a ship constructed on or after 1 January 1990, but prior to 1 January 2000, the International Air Pollution Prevention Certificate shall, for a marine diesel engine to which paragraph 7.1 of this regulation applies, indicate one of the following:

.1: an approved method has been applied pursuant to paragraph 7.1.1 of this regulation;
.2: the engine has been certified pursuant to paragraph 7.1.2 of this regulation;
.3: an approved method is not yet commercially available as described in paragraph 7.2 of this regulation; or
.4: an approved method is not applicable.

]

7.4

Subject to regulation 3 of this Annex, the operation of a marine diesel engine described in subparagraph 7.1 is prohibited, except when the emission of nitrogen oxides (calculated as the total weighted emission of NO₂) from the engine is within the following limits, where n = rated engine speed (crankshaft revolutions per minute):

1: 17.0 g/kWh when n is less than 130 rpm;
2: 45 · n^(-0.2) g/kWh when n is 130 or more but less than 2000 rpm; and
3: 9.8 g/kWh when n is 2000 rpm or more.

7.5

Certification of an Approved Method shall be in accordance with chapter 7 of the revised NO_x Technical Code 2008 and shall include verification:

1: by the designer of the base marine diesel engine to which the Approved Method applies that the calculated effect of the Approved Method will not decrease engine rating by more than 1.0 %, increase fuel consumption by more than 2.0 % as measured according to the appropriate test cycle set forth in the revised NO_x Technical Code 2008, or adversely affect engine durability or reliability; and
2: that the cost of the Approved Method is not excessive, which is determined by a comparison of the amount of NO_x reduced by the Approved Method to achieve the standard set forth in subparagraph 7.4 of this paragraph and the cost of purchasing and installing such Approved Method. ⁽²⁵⁸⁾

Ce=	Cost of Approved Method · 10⁶
	P(kW) · 0768 · 6000(hours/year) · 5 (years) · Δ NOx(g/kWh)

Certification

The revised NO_x Technical Code 2008 shall be applied in the certification, testing, and measurement procedures for the standards set forth in this regulation.

The procedures for determining NO_x emissions set out in the revised NO_x Technical Code 2008 are intended to be representative of the normal operation of the engine. Defeat devices and irrational emission control strategies undermine this intention and shall not be allowed. This regulation shall not prevent the use of auxiliary control devices that are used to protect the engine and/or its ancillary equipment against operating conditions that could result in damage or failure or that are used to facilitate the starting of the engine.

Review

10 [...]

⁽²⁵⁶⁾	Refer to the 2013 Guidelines as required by regulation 13.2.2 of MARPOL Annex VI in respect of non-identical replacement engines not required to meet the Tier III limit, adopted by the MEPC by resolution MEPC.230(65).
⁽²⁵⁷⁾	Refer to the Guidelines for the use of electronic record books under MARPOL, adopted by resolution MEP.312(74)
⁽²⁵⁸⁾	The cost of an Approved Method shall not exceed 375 Special Drawing Rights/metric ton NO_x calculated in accordance with the Cost-Effectiveness formula below:

Wetshistoriek

2.2 gewijzigd bij Res. MEPC.251(66), met ingang van 1 september 2015.

5.1 gewijzigd bij Res. MEPC.251(66), met ingang van 1 september 2015, bij Res. MEPC.271(69), met ingang van 1 september 2017 en bij Res. MEPC.286(71), met ingang van 1 januari 2019.

5.2 gewijzigd bij Res. MEPC.251(66), met ingang van 1 september 2015 en bij Res. MEPC.286(71), met ingang van 1 januari 2019.

5.3 ingevoegd bij Res. MEPC.271(69), met ingang van 1 september 2017, gewijzigd bij Res. MEPC.301(72), met ingang van 1 september 2019 en bij Res. MEPC.316(74), met ingang van 1 oktober 2020.

5.4 en 5.5 ingevoegd bij Res. MEPC.286(71), met ingang van 1 januari 2019.

6 vervangen bij Res. MEPC.286(71), met ingang van 1 januari 2019.

7.3 vervangen bij Res. MEPC. 258 (67), met ingang van 1 maart 2016.

10 opgeheven bij Res. MEPC.251(66), met ingang van 1 september 2015.

Voorgeschiedenis

6 vervangen bij Res. MEPC.202(62), met ingang van 1 januari 2013.

7.3 vervangen bij Res. MEPC.202(62), met ingang van 1 januari 2013.

Regulation 14 Sulphur Oxides (SOx) and Particulate Matter

General Requirements

[ The sulphur content of fuel oil used or carried for use on board a ship shall not exceed 0.50 % m/m.]

The worldwide average sulphur content of residual fuel oil supplied for use on board ships shall be monitored taking into account guidelines developed by the Organization ⁽²⁶⁵⁾

Requirements within Emission Control Areas

[For the purpose of this regulation, an emission control area shall be any sea area, including any port area, designated by the Organization in accordance with the criteria and procedures set forth in appendix III to this Annex. The emission control areas under this regulation are:

.1: the Baltic Sea area as defined in regulation 1.11.2 of Annex I of the present Convention;
.2: the North Sea area as defined in regulation 1.14.6 of Annex V of the present Convention;
.3: the North American Emission Control Area, which means the area described by the coordinates provided in appendix VII to this Annex; and
.4: the United States Caribbean Sea Emission Control Area, which means the area described by the coordinates provided in appendix VII to this Annex.]

[While a ship is operating within an emission control area, the sulphur content of fuel oil used on board that ship shall not exceed 0.10% m/m.]

The sulphur content of fuel oil referred to in paragraph 1 and paragraph 4 of this regulation shall be documented by its supplier as required by regulation 18 of this Annex.

Those ships using separate fuel oils to comply with paragraph 4 of this regulation and entering or leaving an Emission Control Area set forth in paragraph 3 of this regulation shall carry a written procedure showing how the fuel oil change-over is to be done, allowing sufficient time for the fuel oil service system to be fully flushed of all fuel oils exceeding the applicable sulphur content specified in paragraph 4 of this regulation prior to entry into an Emission Control Area. The volume of low sulphur fuel oils in each tank as well as the date, time, and position of the ship when any fuel-oil-change-over operation is completed prior to the entry into an Emission Control Area or commenced after exit from such an area, shall be recorded in such log-book[ ⁽²⁶⁶⁾ ,] as prescribed by the Administration.

[During the first twelve months immediately following entry into force of an amendment designating a specific emission control area under paragraph 3 of this regulation, ships operating in that emission control area are exempt from the requirements in paragraphs 4 and 6 of this regulation and from the requirements of paragraph 5 of this regulation insofar as they relate to paragraph 4 of this regulation.]

[...]

⁽²⁶⁵⁾	MEPC.82(43), Guidelines for Monitoring the World-wide Average Sulphur Content of Residual Fuel Oils Supplied for Use On Board Ships.
⁽²⁶⁶⁾	Refer to the Guidelines for the use of electronic record books under MARPOL, adopted by resolution MEP.312(74)

Wetshistoriek

1 vervangen bij Res. MEPC.305(73), met ingang van 1 maart 2020.

3 vervangen bij Res. MEPC.305(73), met ingang van 1 maart 2020.

4 vervangen bij Res. MEPC.305(73), met ingang van 1 maart 2020.

6 gewijzigd bij Res. MEPC.316(74), met ingang van 1 oktober 2020.

7 vervangen bij Res. MEPC.202(62), met ingang van 1 januari 2013.

8 tot 10 opgeheven bij Res. MEPC.305(73), met ingang van 1 maart 2020.

Voorgeschiedenis

3 vervangen bij Res. MEPC.202(62), corr., 26 september 2011, met ingang van 1 januari 2013.

4 gewijzigd bij Res. MEPC.202(62), met ingang van 1 januari 2013.

Regulation 15 Volatile Organic Compounds (VOCs)

If the emissions of VOCs from a tanker are to be regulated in a port or ports or a terminal or terminals under the jurisdiction of a Party, they shall be regulated in accordance with the provisions of this regulation.

A Party regulating tankers for VOC emissions shall submit a notification to the Organization. This notification shall include information on the size of tankers to be controlled, the cargoes requiring vapour emission control systems, and the effective date of such control. The notification shall be submitted at least six months before the effective date.

A Party which designates ports or terminals at which VOCs emissions from tankers are to be regulated shall ensure that vapour emission control systems, approved by that Party taking into account the safety standards for such systems developed by the Organization ⁽²⁷¹⁾ , are provided in any designated port and terminal and are operated safely and in a manner so as to avoid undue delay to a ship.

The Organization shall circulate a list of the ports and terminals designated by Parties to other Parties and Member States of the Organization for their information.

A tanker to which paragraph 1 of this regulation applies shall be provided with a vapour emission collection system approved by the Administration taking into account the safety standards for such systems developed by the Organization ⁽²⁷²⁾ , and shall use this system during the loading of relevant cargoes. A port or terminal which has installed vapour emission control systems in accordance with this regulation may accept tankers which are not fitted with vapour collection systems for a period of three years after the effective date identified in paragraph 2 of this regulation.

A tanker carrying crude oil shall have on board and implement a VOC Management Plan approved by the Administration. Such a plan shall be prepared taking into account the guidelines developed by the Organization. The plan shall be specific to each ship and shall at least:

1: provide written procedures for minimizing VOC emissions during the loading, sea passage and discharge of cargo;
2: give consideration to the additional VOC generated by crude oil washing;
3: identify a person responsible for implementing the plan; and
4: for ships on international voyages, be written in the working language of the master and officers and, if the working language of the master and officers is not English, French, or Spanish, include a translation into one of these languages.

This regulation shall also apply to gas carriers only if the type of loading and containment systems allow safe retention of non-methane VOCs on board or their safe return ashore. ⁽²⁷³⁾

⁽²⁷¹⁾	MSC/Circ.585, Standards for vapour emission control systems.
⁽²⁷²⁾	MSC/Circ.585, Standards for vapour emission control systems.
⁽²⁷³⁾	MSC.30(61), “International Code for the Construction and Equipment of Ships Carrying Liquefied Gases in Bulk”, chapter 5.

Regulation 16 Shipboard Incineration

Except as provided in paragraph 4 of this regulation, shipboard incineration shall be allowed only in a shipboard incinerator.

Shipboard incineration of the following substances shall be prohibited:

1: residues of cargoes subject to Annex I, II or III or related contaminated packing materials;
2: polychlorinated biphenyls (PCBs);
3: garbage, as defined by Annex V, containing more than traces of heavy metals;
4: refined petroleum products containing halogen compounds;
5: sewage sludge and sludge oil either of which are not generated on board the ship; and
6: exhaust gas cleaning system residues.

Shipboard incineration of polyvinyl chlorides (PVCs) shall be prohibited, except in shipboard incinerator for which an IMO Type Approval Certificates ⁽²⁸⁰⁾ has been issued.

Shipboard incineration of sewage sludge and sludge oil generated during normal operation of a ship may also take place in the main or auxiliary power plant or boilers, but in those cases, shall not take place inside ports, harbours and estuaries.

Nothing in this regulation neither:

1: affects the prohibition in, or other requirements of, the Convention on the Prevention of Marine Pollution by Dumping of Wastes and Other Matter, 1972, as amended, and the 1996 Protocol thereto, nor
2: precludes the development, installation and operation of alternative design shipboard thermal waste treatment devices that meet or exceed the requirements of this regulation.

6.1

Except as provided in subparagraph 6.2 of this paragraph, each incinerator on a ship constructed on or after 1 January 2000 or incinerator which is installed on board a ship on or after 1 January 2000 shall meet the requirements contained in appendix IV to this Annex. Each incinerator subject to this subparagraph shall be approved by the Administration taking into account the standard specification for shipboard incinerators developed by the Organization ⁽²⁸¹⁾ ; or

6.2

The Administration may allow exclusion from the application of subparagraph 6.1 of this paragraph to any incinerator which is installed on board a ship before 19 May 2005, provided that the ship is solely engaged in voyages within waters subject to the sovereignty or jurisdiction of the State the flag of which the ship is entitled to fly.

Incinerators installed in accordance with the requirements of paragraph 6.1 of this regulation shall be provided with a manufacturer's operating manual which is to be retained with the unit and which shall specify how to operate the incinerator within the limits described in paragraph 2 of appendix IV of this Annex.

Personnel responsible for the operation of an incinerator installed in accordance with the requirements of paragraph 6.1 of this regulation shall be trained to implement the guidance provided in the manufacturer's operating manual as required by paragraph 7 of this regulation.

For incinerators installed in accordance with the requirements of paragraph 6.1 of this regulation the combustion chamber gas outlet temperature shall be monitored at all times the unit is in operation. Where that incinerator is of the continuous-feed type, waste shall not be fed into the unit when the combustion chamber gas outlet temperature is below 850°C. Where that incinerator is of the batch-loaded type, the unit shall be designed so that the combustion chamber gas outlet temperature shall reach 600°C within five minutes after start-up and will thereafter stabilize at a temperature not less than 850°C.

⁽²⁸⁰⁾	Type Approval Certificates issued in accordance with resolution MEPC.59(33) or MEPC.76(40).
⁽²⁸¹⁾	Refer to resolution MEPC.76(40), Standard specification for shipboard incinerators.

Regulation 17 Reception Facilities

Each Party undertakes to ensure the provision of facilities adequate to meet the:

1: needs of ships using its repair ports for the reception of ozone depleting substances and equipment containing such substances when removed from ships;
2: needs of ships using its ports, terminals or repair ports for the reception of exhaust gas cleaning residues from an exhaust gas cleaning system, without causing undue delay to ships;
and
3: needs in ship-breaking facilities for the reception of ozone depleting substances and equipment containing such substances when removed from ships.

[1bis

Small Island Developing States may satisfy the requirements in paragraph 1 of this regulation through regional arrangements when, because of those States' unique circumstances, such arrangements are the only practical means to satisfy these requirements. Parties participating in a regional arrangement shall develop a Regional Reception Facilities Plan, taking into account the guidelines developed by the Organization.

The Government of each Party participating in the arrangement shall consult with the Organization for circulation to the Parties of the present Convention:

1: how the Regional Reception Facilities Plan takes into account the Guidelines;
2: particulars of the identified Regional Ships Waste Reception Centres; and
3: particulars of those ports with only limited facilities.]

If a particular port or terminal of a Party is

–: taking into account the guidelines to be developed by the Organization
–: remotely located from, or lacking in, the industrial infrastructure necessary to manage and process those substances referred to in paragraph 1 of this regulation and therefore cannot accept such substances,

then the Party shall inform the Organization of any such port or terminal so that this information may be circulated to all Parties and Member States of the Organization for their information and any appropriate action. Each Party that has provided the Organization with such information shall also notify the Organization of its ports and terminals where reception facilities are available to manage and process such substances.

Each Party shall notify the Organization for transmission to the Members of the Organization of all cases where the facilities provided under this regulation are unavailable or alleged to be inadequate.

Wetshistoriek

1bis ingevoegd bij Res. MEPC.217(63), met ingang van 1 augustus 2013.

Regulation 18 Fuel Oil Availability and Quality

Fuel Oil availability

Each Party shall take all reasonable steps to promote the availability of fuel oils which comply with this Annex and inform the Organization of the availability of compliant fuel oils in its ports and terminals.

2.1

If a ship is found by a Party not to be in compliance with the standards for compliant fuel oils set forth in this Annex, the competent authority of the Party is entitled to require the ship to:

1: present a record of the actions taken to attempt to achieve compliance; and
2: provide evidence that it attempted to purchase compliant fuel oil in accordance with its voyage plan and, if it was not made available where planned, that attempts were made to locate alternative sources for such fuel oil and that despite best efforts to obtain compliant fuel oil, no such fuel oil was made available for purchase.

2.2

The ship should not be required to deviate from its intended voyage or to delay unduly the voyage in order to achieve compliance.

2.3

If a ship provides the information set forth in subparagraph 2.1 of this paragraph, a Party shall take into account all relevant circumstances and the evidence presented to determine the appropriate action to take, including not taking control measures.

2.4

A ship shall notify its Administration and the competent authority of the relevant port of destination when it cannot purchase compliant fuel oil.

2.5

A Party shall notify the Organization when a ship has presented evidence of the non availability of compliant fuel oil.

Fuel Oil quality

Fuel oil for combustion purposes delivered to and used on board ships to which this Annex applies shall meet the following requirements:

1

except as provided in subparagraph 3.2:

1.1

the fuel oil shall be blends of hydrocarbons derived from petroleum refining. This shall not preclude the incorporation of small amounts of additives intended to improve some aspects of performance;

1.2

the fuel oil shall be free from inorganic acid; and

1.3

the fuel oil shall not include any added substance or chemical waste which:

1.3.1: jeopardizes the safety of ships or adversely affects the performance of the machinery, or
1.3.2: is harmful to personnel, or
1.3.3: contributes overall to additional air pollution.

2

fuel oil for combustion purposes derived by methods other than petroleum refining shall not:

2.1

exceed the applicable sulphur content set forth in regulation 14 of this Annex;

2.2

cause an engine to exceed the applicable NO_x emission limit set forth in paragraphs 3, 4, 5.1.1 and 7.4 of regulation 13;

2.3

contain inorganic acid; or

2.4.1: jeopardize the safety of ships or adversely affect the performance of the machinery, or
2.4.2: be harmful to personnel, or
2.4.3: contribute overall to additional air pollution.

This regulation does not apply to coal in its solid form or nuclear fuels. Paragraphs 5, 6, 7.1, 7.2, 8.1, 8.2, 9.2, 9.3, and 9.4 of this regulation do not apply to gas fuels such as Liquified Natural Gas, Compressed Natural Gas or Liquified Petroleum Gas. The sulphur content of gas fuels delivered to a ship specifically for combustion purposes on board that ship shall be documented by the supplier.

For each ship subject to regulations 5 and 6 of this Annex, details of fuel oil for combustion purposes delivered to and used on board shall be recorded by means of a bunker delivery note which shall contain at least the information specified in appendix V to this Annex.

The bunker delivery note shall be kept on board the ship in such a place as to be readily available for inspection at all reasonable times. It shall be retained for a period of three years after the fuel oil has been delivered on board.

7.1

The competent authority of a Party may inspect the bunker delivery notes on board any ship to which this Annex applies while the ship is in its port or offshore terminal, may make a copy of each delivery note, and may require the master or person in charge of the ship to certify that each copy is a true copy of such bunker delivery note. The competent authority may also verify the contents of each note through consultations with the port where the note was issued.

7.2

The inspection of the bunker delivery notes and the taking of certified copies by the competent authority under this paragraph shall be performed as expeditiously as possible without causing the ship to be unduly delayed.

8.1

The bunker delivery note shall be accompanied by a representative sample of the fuel oil delivered taking into account guidelines developed by the Organization ⁽²⁸⁶⁾ . The sample is to be sealed and signed by the supplier's representative and the master or officer in charge of the bunker operation on completion of bunkering operations and retained under the ship's control until the fuel oil is substantially consumed, but in any case for a period of not less than 12 months from the time of delivery.

8.2

If an Administration requires the representative sample to be analysed, it shall be done in accordance with the verification procedure set forth in appendix VI to determine whether the fuel oil meets the requirements of this Annex.

Parties undertake to ensure that appropriate authorities designated by them:

1: maintain a register of local suppliers of fuel oil;
2: require local suppliers to provide the bunker delivery note and sample as required by this regulation, certified by the fuel oil supplier that the fuel oil meets the requirements of regulations 14 and 18 of this Annex;
3: require local suppliers to retain a copy of the bunker delivery note for at least three years for inspection and verification by the port State as necessary;
4: take action as appropriate against fuel oil suppliers that have been found to deliver fuel oil that does not comply with that stated on the bunker delivery note;
5: inform the Administration of any ship receiving fuel oil found to be non compliant with the requirements of regulation 14 or 18 of this Annex; and
6: inform the Organization for transmission to Parties and Member States of the Organization of all cases where fuel oil suppliers have failed to meet the requirements specified in regulation 14 or 18 of this Annex.

In connection with port State inspections carried out by Parties, the Parties further undertake to:

1: inform the Party or non-Party under whose jurisdiction a bunker delivery note was issued of cases of delivery of noncompliant fuel oil, giving all relevant information; and
2: ensure that remedial action as appropriate is taken to bring noncompliant fuel oil discovered into compliance.

For every ship of 400 gross tonnage and above on scheduled services with frequent and regular port calls, an Administration may decide after application and consultation with affected States that compliance with paragraph 6 of this regulation may be documented in an alternative manner which gives similar certainty of compliance with regulation 14 and 18 of this Annex.

⁽²⁸⁶⁾

Refer to MEPC.96(47), “Guidelines for the Sampling of Fuel Oil for Determination of Compliance with Annex VI of MARPOL 73/78”.

Chapter 4 Regulations on energy efficiency for ships

Wetshistoriek

Chapter 4 (Regulations 19 tot 23) ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Regulation 19 Application

This chapter shall apply to all ships of 400 gross tonnage and above.

The provisions of this chapter shall not apply to:

1: ships solely engaged in voyages within waters subject to the sovereignty or jurisdiction of the State the flag of which the ship is entitled to fly. However, each Party should ensure, by the adoption of appropriate measures, that such ships are constructed and act in a manner consistent with chapter 4, so far as is reasonable and practicable;
2: [ships not propelled by mechanical means, and platforms including FPSOs and FSUs and drilling rigs, regardless of their propulsion.]

3 [

Regulations 20 and 21 of this Annex shall not apply to ships which have non-conventional propulsion, except that regulations 20 and 21 shall apply to cruise passenger ships having non-conventional propulsion and LNG carriers having conventional or non-conventional propulsion, delivered on or after 1 September 2019, as defined in paragraph 43 of regulation 2. Regulations 20 and 21 shall not apply to [category A ships as defined in the Polar Code].

]

Notwithstanding the provisions of paragraph 1 of this regulation, the Administration may waive the requirement for a ship of 400 gross tonnage and above from complying with regulation 20 and regulation 21.

The provision of paragraph 4 of this regulation shall not apply to ships of 400 gross tonnage and above:

1: for which the building contract is placed on or after 1 January 2017; or
2: in the absence of a building contract, the keel of which is laid or which is at a similar stage of construction on or after 1 July 2017; or
3: the delivery of which is on or after 1 July 2019; or
4: in cases of a major conversion of a new or existing ship, as defined in regulation 2.24, on or after 1 January 2017, and in which regulation 5.4.2 and regulation 5.4.3 of chapter 2 apply.

The Administration of a Party to the present Convention which allows application of paragraph 4, or suspends, withdraws or declines the application of that paragraph, to a ship entitled to fly its flag shall forthwith communicate to the Organization for circulation to the Parties to the present Protocol particulars thereof, for their information.]

Wetshistoriek

Ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Wetshistoriek

2.2 ingevoegd bij Res. MEPC.251(66), met ingang van 1 september 2015.

3 vervangen bij Res. MEPC.251(66), met ingang van 1 september 2015 en gewijzigd bij Res. MEPC.316(74), met ingang van 1 oktober 2020.

Regulation 20 Attained Energy Efficiency Design Index (Attained EEDI)

1 [

The attained EEDI shall be calculated for:

.1: each new ship;
.2: each new ship which has undergone a major conversion; and
.3: each new or existing ship which has undergone a major conversion, that is so extensive that the ship is regarded by the Administration as a newly-constructed ship, which falls into one or more of the categories in regulations 2.25 to 2.35, 2.38 and 2.39 of this Annex. The attained EEDI shall be specific to each ship and shall indicate the estimated performance of the ship in terms of energy efficiency, and be accompanied by the EEDI technical file that contains the information necessary for the calculation of the attained EEDI and that shows the process of calculation. The attained EEDI shall be verified, based on the EEDI technical file, either by the Administration or by any organization duly authorized by it ⁽²⁸⁹⁾ .

]

The attained EEDI shall be calculated taking into account guidelines developed by the Organization.]

⁽²⁸⁹⁾

Refer to Code for Recognized Organizations (RO Code, adopted by the MEPC by resolution MEPC.237(65), as may be amended.

Wetshistoriek

Ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Wetshistoriek

1 vervangen bij Res. MEPC.251(66), met ingang van 1 september 2015.

Regulation 21 Required EEDI

For each:

.1: new ship;
.2: new ship which has undergone a major conversion; and
.3: new or existing ship which has undergone a major conversion that is so extensive that the ship is regarded by the Administration as a newly constructed ship which falls into one of the categories defined in regulation 2.25 to 2.31 and to which this chapter is applicable, the attained EEDI shall be as follows:
Attained EEDI ≤ Required EEDI = (1-X/100) × Reference line value

where X is the reduction factor specified in table 1 for the required EEDI compared to the EEDI Reference line.

]

For each new and existing ship that has undergone a major conversion which is so extensive that the ship is regarded by the Administration as a newly constructed ship, the attained EEDI shall be calculated and meet the requirement of paragraph 21.1 with the reduction factor applicable corresponding to the ship type and size of the converted ship at the date of the contract of the conversion, or in the absence of a contract, the commencement date of the conversion.

Table 1. Reduction factors (in percentage) for the EEDI relative to the EEDI Reference line
Ship Type	Size	Phase 0 1 Jan 2013 – 31 Dec 2014	Phase 1 1 Jan 2015 – 31 Dec 2019	Phase 2 1 Jan 2020 – 31 Dec 2024	Phase 3 1 Jan 2025 and onwards
Bulk carrier	20,000 DWT and above	0	10	20	30
Bulk carrier	10,000 – 20,000 DWT	n/a	0-10 ^(*)	0-20 ^(*)	0-30*
Gas carrier	10,000 DWT and above	0	10	20	30
Gas carrier	2,000 – 10,000 DWT	n/a	0-10 ^(*)	0-20 ^(*)	0-30 ^(*)
Tanker	20,000 DWT and above	0	10	20	30
Tanker	4,000 – 20,000 DWT	n/a	0-10 ^(*)	0-20 ^(*)	0-30 ^(*)
Container ship	15,000 DWT and above	0	10	20	30
Container ship	10,000 – 15,000 DWT	n/a	0-10 ^(*)	0-20 ^(*)	0-30 ^(*)
General Cargo ships	15,000 DWT and above	0	10	20	30
General Cargo ships	3,000 – 15,000 DWT	n/a	0-10 ^(*)	0-20 ^(*)	0-30 ^(*)
Refrigerated cargo carrier	5,000 DWT and above	0	10	20	30
Refrigerated cargo carrier	3,000 – 5,000 DWT	n/a	0-10 ^(*)	0-20 ^(*)	0-30 ^(*)
Combination carrier	20,000 DWT and above	0	10	20	30
Combination carrier	4,000 – 20,000 DWT	n/a	0-10 ^(*)	0-20 ^(*)	0-30 ^(*)
[ LNG carrier ^(***)	10,000 DWT and above	n/a	10 ^(**)	20	30
Ro-ro cargo ship (vehicle carrier) ^(***)	10,000 DWT and above	n/a	5 ^(**)	15	30
Ro-ro cargo ship ^(***)	2,000 DWT and above	n/a	5 ^(**)	20	30
Ro-ro cargo ship ^(***)	1,000-2,000 DWT and above	n/a	0-5 ^(***)	0-20 ^(*)	0-30 ^(*)
Ro-ro passenger ship ^(***)	1,000 DWT and above	n/a	5 ^(**)	20	30
Ro-ro passenger ship ^(***)	250-1,000 DWT and above	n/a	0-5 ^(***)	0-20 ^(*)	0-30 ^(*)
Cruise passenger ship ^(***) having non-conventional propulsion	85,000 GT and above	n/a	5 ^(**)	20	30
	25,000-85,000 GT and above	n/a	0-5 ^(***)	0-20 ^(*)	0-30 ^(*) ]

^(*)	Reduction factor to be linearly interpolated between the two values dependent upon ship size. The lower value of the reduction factor is to be applied to the smaller ship size.
^(**)	Phase 1 commences for those ships on 1 September 2015.
^(***)	Reduction factor applies to those ships delivered on or after 1 September 2019, as defined in paragraph 43 of regulation 2.

n/a means that no required EEDI applies.

The Reference line values shall be calculated as follows:

Reference line value = a × b^-c

where a, b and c are the parameters given in Table 2.

Table 2. Parameters for determination of reference values for the different ship types
Ship type defined in regulation 2	a	b	c
2.25 Bulk carrier	961.79	DWT of the ship	0.477
2.26 Gas carrier	1120.00	DWT of the ship	0.456
2.27 Tanker	1218.80	DWT of the ship	0.488
2.28 Container ship	174.22	DWT of the ship	0.201
2.29 General cargo ship	107.48	DWT of the ship	0.216
2.30 Refrigerated cargo carrier	227.01	DWT of the ship	0.244
2.31 Combination carrier	1219.00	DWT of the ship	0.488
[ 2.33 Ro-ro cargo ship (vehicle carrier)	(DWT/GT)^-0.7 • 780.36 where DWT/GT < 0.3 1812.63 where DWT/GT ≥ 0.3	DWT of the ship	0.471]
[2.34 Ro-ro cargo ship	1405.15	DWT of the ship	0.498]
	1686.17 ^(*)	DWT of the ship where DWT≤17,000 ^(*)
	1686.17 ^(*)	17,000 where DWT > 17,000 ^(*)
[2.35 Ro-ro passenger ship	752.16	DWT of the ship	0.381]
	902.59 ^(*)	DWT of the ship where DWT≤10,000 ^(*)
	902.59 ^(*)	10,000 where DWT > 10,000 ^(*)
[2.38 LNG carrier	2253.7	DWT of the ship	0.474
2.39 Cruise passenger ship having non-conventional propulsion	170.84	GT of the ship	0.214 ]

^(*)	to be used from phase 2 and thereafter

If the design of a ship allows it to fall into more than one of the ship type definitions specified in table 2, the required EEDI for the ship shall be the most stringent (the lowest) required EEDI.

For each ship to which this regulation applies, the installed propulsion power shall not be less than the propulsion power needed to maintain the manoeuvrability of the ship under adverse conditions as defined in the guidelines to be developed by the Organization.

At the beginning of Phase 1 and at the midpoint of Phase 2, the Organization shall review the status of technological developments and, if proven necessary, amend the time periods, the EEDI reference line parameters for relevant ship types and reduction rates set out in this regulation.]

Wetshistoriek

Ingevoegd bij Res. MEPC.203(62), corr., 26 september 2011, met ingang van 1 januari 2013.

Wetshistoriek

1 vervangen bij Res. MEPC.251(66), met ingang van 1 september 2015.

2, tabel 1 gewijzigd bij Res. MEPC.251(66), met ingang van 1 september 2015.

3, tabel 2 gewijzigd bij Res. MEPC.251(66), met ingang van 1 september 2015 en bij Res. MEPC.301(72), met ingang van 1 september 2019.

Regulation 22 Ship Energy Efficiency Management Plan (SEEMP)

Each ship shall keep on board a ship specific Ship Energy Efficiency Management Plan (SEEMP). This may form part of the ship's Safety Management System (SMS).

On or before 31 December 2018, in the case of a ship of 5,000 gross tonnage and above, the SEEMP shall include a description of the methodology that will be used to collect the data required by regulation 22A.1 of this Annex and the processes that will be used to report the data to the ship's Administration.]

[3]

The SEEMP shall be developed taking into account guidelines adopted by the Organization.]

Wetshistoriek

Ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Wetshistoriek

2 ingevoegd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Regulation 22A Collection and reporting of ship fuel oil consumption data

From calendar year 2019, each ship of 5,000 gross tonnage and above shall collect the data specified in appendix IX to this Annex, for that and each subsequent calendar year or portion thereof, as appropriate, according to the methodology included in the SEEMP.

Except as provided for in paragraphs 4, 5 and 6 of this regulation, at the end of each calendar year, the ship shall aggregate the data collected in that calendar year or portion thereof, as appropriate.

Except as provided for in paragraphs 4, 5 and 6 of this regulation, within three months after the end of each calendar year, the ship shall report to its Administration or any organization duly authorized by it ⁽²⁹²⁾ , the aggregated value for each datum specified in appendix IX to this Annex, via electronic communication and using a standardized format to be developed by the Organization ⁽²⁹³⁾ .

In the event of the transfer of a ship from one Administration to another, the ship shall on the day of completion of the transfer or as close as practical thereto report to the losing Administration or any organization duly authorized by it ⁽²⁹⁴⁾ , the aggregated data for the period of the calendar year corresponding to that Administration, as specified in appendix IX to this Annex and, upon prior request of that Administration, the disaggregated data.

In the event of a change from one Company to another, the ship shall on the day of completion of the change or as close as practical thereto report to its Administration or any organization duly authorized by it ⁽²⁹⁵⁾ , the aggregated data for the portion of the calendar year corresponding to the Company, as specified in appendix IX to this Annex and, upon request of its Administration, the disaggregated data.

In the event of change from one Administration to another and from one Company to another concurrently, paragraph 4 of this regulation shall apply.

The data shall be verified according to procedures established by the Administration, taking into account guidelines to be developed by the Organization.

Except as provided for in paragraphs 4, 5 and 6 of this regulation, the disaggregated data that underlies the reported data noted in appendix IX to this Annex for the previous calendar year shall be readily accessible for a period of not less than 12 months from the end of that calendar year and be made available to the Administration upon request.

The Administration shall ensure that the reported data noted in appendix IX to this Annex by its registered ships of 5,000 gross tonnage and above are transferred to the IMO Ship Fuel Oil Consumption Database via electronic communication and using a standardized format to be developed by the Organization not later than one month after issuing the Statements of Compliance of these ships.

On the basis of the reported data submitted to the IMO Ship Fuel Oil Consumption Database, the Secretary-General of the Organization shall produce an annual report to the Marine Environment Protection Committee summarizing the data collected, the status of missing data, and such other relevant information as may be requested by the Committee.

The Secretary-General of the Organization shall maintain an anonymized database such that identification of a specific ship will not be possible. Parties shall have access to the anonymized data strictly for their analysis and consideration.

The IMO Ship Fuel Oil Consumption Database shall be undertaken and managed by the Secretary-General of the Organization, pursuant to guidelines to be developed by the Organization.]

⁽²⁹²⁾	Refer to the Guidelines for the authorization of organizations acting on behalf of the Administration, adopted by the Organization by resolution A.739(18), as may be amended by the Organization, and the Specifications on the survey and certification functions of recognized organizations acting on behalf of the Administration, adopted by the Organization by resolution A.789(19), as may be amended by the Organization.
⁽²⁹³⁾	Refer to the 2016 Guidelines for the development of a Ship Energy Efficiency Management Plan (SEEMP Guidelines) (resolution MEPC.282(70)).
⁽²⁹⁴⁾	Refer to the Guidelines for the authorization of organizations acting on behalf of the Administration, adopted by the Organization by resolution A.739(18), as may be amended by the Organization, and the Specifications on the survey and certification functions of recognized organizations acting on behalf of the Administration, adopted by the Organization by resolution A.789(19), as may be amended by the Organization.
⁽²⁹⁵⁾	Refer to the Guidelines for the authorization of organizations acting on behalf of the Administration, adopted by the Organization by resolution A.739(18), as may be amended by the Organization, and the Specifications on the survey and certification functions of recognized organizations acting on behalf of the Administration, adopted by the Organization by resolution A.789(19), as may be amended by the Organization.

Wetshistoriek

Ingevoegd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Regulation 23 Promotion of technical co-operation and transfer of technology relating to the improvement of energy efficiency of ships

Administrations shall, in co-operation with the Organization and other international bodies, promote and provide, as appropriate, support directly or through the Organization to States, especially developing States, that request technical assistance.

The Administration of a Party shall co-operate actively with other Parties, subject to its national laws, regulations and policies, to promote the development and transfer of technology and exchange of information to States which request technical assistance, particularly developing States, in respect of the implementation of measures to fulfil the requirements of chapter 4 of this annex, in particular regulations 19.4 to 19.6.]

Wetshistoriek

Ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Chapter 5 Verification of compliance with the provisions of this annex

Wetshistoriek

Chapter 5 (Regulations 24 en 25) ingevoegd bij Res. MEPC.247(66), met ingang van 1 januari 2016.

Regulation 24 Application

Parties shall use the provisions of the Code for Implementation in the execution of their obligations and responsibilities contained in this Annex.

]

Wetshistoriek

Ingevoegd bij Res. MEPC.247(66), met ingang van 1 januari 2016.

Regulation 25 Verification of compliance

Every Party shall be subject to periodic audits by the Organization in accordance with the audit standard to verify compliance with and implementation of this Annex.

The Secretary-General of the Organization shall have responsibility for administering the Audit Scheme, based on the guidelines developed by the Organization ⁽³⁰⁴⁾ .

Every Party shall have responsibility for facilitating the conduct of the audit and implementation of a programme of actions to address the findings, based on the guidelines developed by the Organization ⁽³⁰⁵⁾ .

Audit of all Parties shall be:

.1: based on an overall schedule developed by the Secretary-General of the Organization, taking into account the guidelines developed by the Organization ⁽³⁰⁶⁾ ; and
.2: conducted at periodic intervals, taking into account the guidelines developed by the Organization ⁽³⁰⁷⁾ .

]

⁽³⁰⁴⁾	Refer to the Framework and Procedures for the IMO Member State Audit Scheme, adopted by the Organization by resolution A.1067(28).
⁽³⁰⁵⁾	Refer to the Framework and Procedures for the IMO Member State Audit Scheme, adopted by the Organization by resolution A.1067(28).
⁽³⁰⁶⁾	Refer to the Framework and Procedures for the IMO Member State Audit Scheme, adopted by the Organization by resolution A.1067(28).
⁽³⁰⁷⁾	Refer to the Framework and Procedures for the IMO Member State Audit Scheme, adopted by the Organization by resolution A.1067(28).

Wetshistoriek

Ingevoegd bij Res. MEPC.247(66), met ingang van 1 januari 2016.

Appendix I Form of International Air Pollution Prevention (IAPP) Certificate and Supplement (Regulation 8)

Redactionele commentaar

De voetnoot in het Supplement to International Air Pollution Prevention Certificate (IAPP Certificate) wordt als volgt gewijzigd:

“* Completed only in respect of ships constructed on or after 1 January 2016 that are specially designed, and used solely, for recreational purposes and to which, in accordance with regulation 13.5.2.1 and regulation 13.5.2.3, the NO_x emission limit as given by regulation 13.5.1.1 will not apply.”

De voetnoot gerelateerd aan paragraaf 1.4 wordt door de volgende voetnoot vervangen:

“* Completed only in respect of ships constructed on or after 1 January 2016 that are specially designed, and used solely for recreational purposes and to which, in accordance with regulation 13.5.2.1 or regulation 13.5.2.3, the NO_x emission limit as given by regulation 13.5.1.1 will not apply.”

Paragraaf 2.2.1 wordt vervangen door de volgende paragraaf:

"2.2.1 The following marine diesel engines installed on this ship are in accordance with the requirements of regulation 13, as indicated:”

Paragraaf 2.5 wordt vervangen bij Res. MEPC. 258 (67), met ingang van 1 maart 2016.

Paragraaf 2.3.1 en 2.3.2 wordt als volgt vervangen bij Res. MEPC.305(73), met ingang van 1 maart 2020:

“2.3.1 When the ship operates outside of an emission control area specified in regulation 14.3, the ship uses:

.1: fuel oil with a sulphur content as documented by bunker delivery notes that does not exceed the limit value of 0.50% m/m, and/or
.2: an equivalent arrangement approved in accordance with regulation 4.1 as listed in paragraph 2.6 that is at least as effective in terms of SOX emission reductions as compared to using a fuel oil with a sulphur content limit value of 0.50% m/m

2.3.2 When the ship operates inside an emission control area specified in regulation 14.3, the ship uses:

.1: fuel oil with a sulphur content as documented by bunker delivery notes that does not exceed the limit value of 0.10% m/m, and/or
.2: an equivalent arrangement approved in accordance with regulation 4.1 as listed in paragraph 2.6 that is at least as effective in terms of SOX emission reductions as compared to using a fuel oil with a sulphur content limit value of 0.10% m/m”

Paragraaf 2.3.3 wordt als volgt ingevoegd bij Res. MEPC.305(73), met ingang van 1 maart 2020:

“2.3.3 For a ship without an equivalent arrangement approved in accordance with regulation 4.1 as listed in paragraph 2.6, the sulphur content of fuel oil carried for use on board the ship shall not exceed 0.50% m/m as documented by bunker delivery notes”

Appendix I wordt als volgt gewijzigd bij Res. MEPC.316(74), met ingang van 1 oktober 2020:

In the introductory paragraph of Appendix I, the words “by resolution MEPC.176(58) in 2008” are deleted.

Wetshistoriek

Gewijzigd bij Res. MEPC.305(73), met ingang van 1 maart 2020 en bij Res. MEPC.316(74), met ingang van 1 oktober 2020.

Appendix II Test cycles and weighing factors (Regulation 13)

The following test cycles and weighing factors shall be applied for verification of compliance of marine diesel engines with the applicable NOx limit in accordance with regulation 13 of this Annex using the test procedure and calculation method as specified in the revised NOx Technical Code 2008.

1: For constant-speed marine engines for ship main propulsion, including diesel electric drive, test cycle E2 shall be applied;
2: For controllable-pitch propeller sets test cycle E2 shall be applied;
3: For propeller-law-operated main and propeller-law-operated auxiliary engines the test cycle E3 shall be applied;
4: For constant-speed auxiliary engines test cycle D2 shall be applied; and
5: For variable-speed, variable-load auxiliary engines, not included above, test cycle C1 shall be applied.

Test cycle for constant speed main propulsion application (including diesel-electric drive and all controllable-pitch propeller installations)
Test cycle type E2	Speed	100 %	100 %	100 %	100 %
	Power	100 %	75 %	50 %	25 %
	Weighting factor	0.2	0.5	0.15	0.15

Test cycle for propeller-law-operated main and propeller-law-operated auxiliary engine application
Test cycle type E3	Speed	100 %	91 %	80 %	63 %
	Power	100 %	75 %	50 %	25 %
	Weighting factor	0.2	0.5	0.15	0.15

Test cycle for constant-speed auxiliary engine application
Test cycle type D2	Speed	100 %	100 %	100 %	100 %	100 %
	Power	100 %	75 %	50 %	25 %	10 %
	Weighting factor	0.05	0.25	0.3	0.3	0.1

Test cycle for variable-speed and load auxiliary engine application
Test cycle type C1	Speed	Rated				Intermediate			Idle
	Torque	100 %	75 %	50 %	10 %	100 %	75 %	50 %	0 %
	Weighting factor	0.15	0.15	0.15	0.1	0.1	0.1	0.1	0.15

In the case of an engine to be certified in accordance with subparagraph 5.1.1 of regulation 13, the specific emission at each individual mode point shall not exceed the applicable NOx emission limit value by more than 50 % except as follows:

1: The 10 % mode point in the D2 test cycle.
2: The 10 % mode point in the C1 test cycle.
3: The idle mode point in the C1 test cycle.

Appendix III Criteria and procedures for designation of emission control areas (Regulation 13.6 and regulation 14.3)

1 Objectives

1.1

The purpose of this appendix is to provide the criteria and procedures to Parties for the formulation and submission of proposals for the designation of Emission Control Areas and to set forth the factors to be considered in the assessment of such proposals by the Organization.

1.2

Emissions of NO_x, SO_x and particulate matter from ocean-going ships contribute to ambient concentrations of air pollution in cities and coastal areas around the world. Adverse public health and environmental effects associated with air pollution include premature mortality, cardiopulmonary disease, lung cancer, chronic respiratory ailments, acidification and eutrophication.

1.3

An Emission Control Area should be considered for adoption by the Organization if supported by a demonstrated need to prevent, reduce, and control emissions of NO_x or SO_x and particulate matter or all three types of emissions (hereinafter emissions) from ships.

2 Process for the designation of emission control areas

2.1 A proposal to the Organization for designation of an Emission Control Area for NO_x

or SO_x and particulate matter or all three types of emissions may be submitted only by Parties. Where two or more Parties have a common interest in a particular area, they should formulate a coordinated proposal.

2.2

A proposal to designate a given area as an Emission Control Area should be submitted to the Organization in accordance with the rules and procedures established by the Organization.

3 Criteria for designation of an emission control area

3.1

The proposal shall include:

1: a clear delineation of the proposed area of application, along with a reference chart on which the area is marked;
2: the type or types of emission(s) that is or are being proposed for control (i.e. NO_x or SO_x and particulate matter or all three types of emissions);
3: a description of the human populations and environmental areas at risk from the impacts of ship emissions;
4: an assessment that emissions from ships operating in the proposed area of application are contributing to ambient concentrations of air pollution or to adverse environmental impacts. Such assessment shall include a description of the impacts of the relevant emissions on human health and the environment, such as adverse impacts to terrestrial and aquatic ecosystems, areas of natural productivity, critical habitats, water quality, human health, and areas of cultural and scientific significance, if applicable. The sources of relevant data including methodologies used shall be identified;
5: relevant information pertaining to the meteorological conditions in the proposed area of application to the human populations and environmental areas at risk, in particular prevailing wind patterns, or to topographical, geological, oceanographic, morphological, or other conditions that contribute to ambient concentrations of air pollution or adverse environmental impacts;
6: the nature of the ship traffic in the proposed Emission Control Area, including the patterns and density of such traffic;
7: a description of the control measures taken by the proposing Party or Parties addressing land-based sources of NO_x, SO_x and particulate matter emissions affecting the human populations and environmental areas at risk that are in place and operating concurrent with the consideration of measures to be adopted in relation to provisions of regulations 13 and 14 of Annex VI; and
8: the relative costs of reducing emissions from ships when compared with land based controls, and the economic impacts on shipping engaged in international trade.

3.2

The geographical limits of an Emission Control Area will be based on the relevant criteria outlined above, including emissions and deposition from ships navigating in the proposed area, traffic patterns and density, and wind conditions.

4 Procedures for the assessment and adoption of emission control areas by the organization

4.1

The Organization shall consider each proposal submitted to it by a Party or Parties.

4.2

In assessing the proposal, the Organization shall take into account the criteria which are to be included in each proposal for adoption as set forth in section 3 above.

4.3

An Emission Control Area shall be designated by means of an amendment to this Annex, considered, adopted and brought into force in accordance with article 16 of the present Convention.

5 Operation of emission control areas

5.1

Parties which have ships navigating in the area are encouraged to bring to the Organization any concerns regarding the operation of the area.

Appendix IV Type approval and operating limits for shipboard incinerators (Regulation 16)

Ships incinerators described in regulation 16.6.1 on board shall possess an IMO type approval certificate for each incinerator. In order to obtain such certificate, the incinerator shall be designed and built to an approved standard as described in regulation 16.6.1. Each model shall be subject to a specified type approval test operation at the factory or an approved test facility, and under the responsibility of the Administration, using the following standard fuel/waste specification for the type approval test for determining whether the incinerator operates within the limits specified in paragraph 2 of this appendix:

Sludge Oil Consisting of:	75 % Sludge oil from HFO;
	5 % waste lubricating oil; and
	20 % emulsified water.
Solid waste consisting of:	50 % food waste;
	50 % rubbish containing;
	approx. 30 % paper,
	approx. 40 % cardboard,
	approx. 10 % rags,
	approx. 20 % plastic

The mixture will have up to 50 % moisture and 7 % incombustible solids.

Incinerators described in regulation 16.6.1 shall operate within the following limits:

O₂ in combustion chamber:	6 – 12 %
CO in flue gas maximum average:	200 mg/MJ
Soot number maximum average:	Bacharach 3 or Ringelman 1 (20 % opacity)
(A higher soot number is acceptable only during very short periods such as starting up)
Unburned components in ash residues:	Maximum 10 % by Weight
Combustion chamber flue gas outlet temperature range:	850 – 1200°C

Appendix V Information to be included in the bunker delivery note (Regulation 18.5)

[1.

Name and IMO Number of receiving ship

[2.

Port

[3.

Date of commencement of delivery

[4.

Name, address, and telephone number of marine fuel oil supplier

[5.

Product name(s)

[6.

Quantity in metric tons

[7.

Density at 15 °C [(kg/m³)] ⁽³¹⁶⁾

[8.

Sulphur content (% m/m) ⁽³¹⁷⁾

[9.

[A declaration signed and certified by the fuel oil supplier's representative that the fuel oil supplied is in conformity with regulation 18.3 of this Annex and that the sulphur content of the fuel oil supplied does not exceed:

□

the limit value given by regulation 14.1 of this Annex;

□

the limit value given by regulation 14.4 of this Annex; or

□

the purchaser's specified limit value of _____ (% m/m), as completed by the fuel oil supplier's representative and on the basis of the purchaser's notification that the fuel oil is intended to be used:

.1: in combination with an equivalent means of compliance in accordance with regulation 4 of this Annex; or
.2: is subject to a relevant exemption for a ship to conduct trials for sulphur oxides emission reduction and control technology research in accordance with regulation 3.2 of this Annex.

The declaration shall be completed by the fuel oil supplier's representative by marking the applicable box(es) with a cross (x).

]

⁽³¹⁶⁾	Fuel oil shall be tested in accordance with ISO 3675:1998 or ISO 12185:1996.
⁽³¹⁷⁾	Fuel oil shall be tested in accordance with ISO 8754:2003.

Wetshistoriek

Genummerd en gewijzigd bij Res. MEPC.286(71), met ingang van 1 januari 2019.

Appendix VI Fuel verification procedure for MARPOL Annex VI / Fuel oil samples (Regulation 18.8.2)

The following procedure shall be used to determine whether the fuel oil delivered to and used on board ships is compliant with the sulphur limits required by regulation 14 of Annex VI.

1 General requirements

1.1

The representative fuel oil sample, which is required by paragraph 8.1 of regulation 18 (the “MARPOL sample”) shall be used to verify the sulphur content of the fuel oil supplied to a ship.

1.2

An Administration, through its competent authority, shall manage the verification procedure.

1.3

The laboratories responsible for the verification procedure set forth in this appendix shall be fully accredited ⁽³²²⁾ for the purpose of conducting the tests.

2 Verification procedure stage 1

2.1

The MARPOL sample shall be delivered by the competent authority to the laboratory.

2.2

The laboratory shall:

1: record the details of the seal number and the sample label on the test record;
2: confirm that the condition of the seal on the MARPOL sample has not been broken; and
3: reject any MARPOL sample where the seal has been broken.

2.3

If the seal of the MARPOL sample has not been broken, the laboratory shall proceed with the verification procedure and shall:

1: ensure that the MARPOL sample is thoroughly homogenized;
2: draw two sub-samples from the MARPOL sample; and
3: reseal the MARPOL sample and record the new reseal details on the test record.

2.4

The two sub-samples shall be tested in succession, in accordance with the specified test method referred to in appendix V. For the purposes of this verification procedure, the results of the test analysis shall be referred to as “A” and “B”:

1: If the results of “A” and “B” are within the repeatability (r) of the test method, the results shall be considered valid.
2: If the results of “A” and “B” are not within the repeatability (r) of the test method, both results shall be rejected and two new sub-samples should be taken by the laboratory and analysed. The sample bottle should be resealed in accordance with paragraph 2.3.3 above after the new sub-samples have been taken.

2.5

If the test results of “A” and “B” are valid, an average of these two results should be calculated thus giving the result referred to as “X”:

1: If the result of “X” is equal to or falls below the applicable limit required by Annex VI, the fuel oil shall be deemed to meet the requirements.
2: If the result of “X” is greater than the applicable limit required by Annex VI, Verification Procedure Stage 2 should be conducted; however, if the result of “X” is greater than the specification limit by 0.59R (where R is the reproducibility of the test method), the fuel oil shall be considered non-compliant and no further testing is necessary.

3 Verification Procedure Stage 2

3.1

If Stage 2 of the verification procedure is necessary in accordance with paragraph 2.5.2 above, the competent authority shall send the MARPOL sample to a second accredited laboratory.

3.2

Upon receiving the MARPOL sample, the laboratory shall:

1: record the details of the reseal number applied in accordance with 2.3.3 and the sample label on the test record;
2: draw two sub-samples from the MARPOL sample; and
3: reseal the MARPOL sample and record the new reseal details on the test record.

3.3

The two sub-samples shall be tested in succession, in accordance with the test method specified in appendix V. For the purposes of this verification procedure, the results of the test analysis shall be referred to as “C” and “D”:

1: If the results of “C” and “D” are within the repeatability (r) of the test method, the results shall be considered valid.
2: If the results of “C” and “D” are not within the repeatability (r) of the test method, both results shall be rejected and two new sub-samples shall be taken by the laboratory and analysed. The sample bottle should be resealed in accordance with paragraph 3.2.3 after the new sub-samples have been taken.

3.4

If the test results of “C” and “D” are valid, and the results of “A”, “B”, “C”, and “D” are within the reproducibility (R) of the test method then the laboratory shall average the results, which is referred to as “Y”:

1: If the result of “Y” is equal to or falls below the applicable limit required by Annex VI, the fuel oil shall be deemed to meet the requirements.
2: If the result of “Y” is greater than the applicable limit required by Annex VI, then the fuel oil fails to meet the standards required by Annex VI.

3.5

If the result of “A”, “B”, “C” and “D” are not within the reproducibility (R) of the test method then the Administration may discard all of the test results and, at its discretion, repeat the entire testing process.

3.6

The results obtained from the verification procedure are final.

⁽³²²⁾

Accreditation is in accordance with ISO 17025 or an equivalent standard.

Appendix VII Emission Control Area, (Regulation 13.6 and regulation 14.3)

The boundaries of emission control areas designated under regulations 13.6 and 14.3, other than the Baltic Sea and the North Sea areas, are set forth in this appendix.

The North American area comprises:

1

the sea area located off the Pacific coasts of the United States and Canada, enclosed by geodesic lines connecting the following coordinates:

POINT	LATITUDE	LONGITUDE
1	32º 32′ 10″ N.	117º 06′ 11″ W.
2	32º 32′ 04″ N.	117º 07′ 29″ W.
3	32º 31′ 39″ N.	117º 14′ 20″ W.
4	32º 33′ 13″ N.	117º 15′ 50″ W.
5	32º 34′ 21″ N.	117º 22′ 01″ W.
6	32º 35′ 23″ N.	117º 27′ 53″ W.
7	32º 37′ 38″ N.	117º 49′ 34″ W.
8	31º 07′ 59″ N.	118º 36′ 21″ W.
9	30º 33′ 25″ N.	121º 47′ 29″ W.
10	31º 46′ 11″ N.	123º 17′ 22″ W.
11	32º 21′ 58″ N.	123º 50′ 44″ W.
12	32º 56′ 39″ N.	124º 11′ 47″ W.
13	33º 40′ 12″ N.	124º 27′ 15″ W.
14	34º 31′ 28″ N.	125º 16′ 52″ W.
15	35º 14′ 38″ N.	125º 43′ 23″ W.
16	35º 43′ 60″ N.	126º 18′ 53″ W.
17	36º 16′ 25″ N.	126º 45′ 30″ W.
18	37º 01′ 35″ N.	127º 07′ 18″ W.
19	37º 45′ 39″ N.	127º 38′ 02″ W.
20	38º 25′ 08″ N.	127º 52′ 60″ W.
21	39º 25′ 05″ N.	128º 31′ 23″ W.
22	40º 18′ 47″ N.	128º 45′ 46″ W.
23	41º 13′ 39″ N.	128º 40′ 22″ W.
24	42º 12′ 49″ N.	129º 00′ 38″ W.
25	42º 47′ 34″ N.	129º 05′ 42″ W.
26	43º 26′ 22″ N.	129º 01′ 26″ W.
27	44º 24′ 43″ N.	128º 41′ 23″ W.
28	45º 30′ 43″ N.	128º 40′ 02″ W.
29	46º 11′ 01″ N.	128º 49′ 01″ W.
30	46º 33′ 55″ N.	129º 04′ 29″ W.
31	47º 39′ 55″ N.	131º 15′ 41″ W.
32	48º 32′ 32″ N.	132º 41′ 00″ W.
33	48º 57′ 47″ N.	133º 14′ 47″ W.
34	49º 22′ 39″ N.	134º 15′ 51″ W.
35	50º 01′ 52″ N.	135º 19′ 01″ W.
36	51º 03′ 18″ N.	136º 45′ 45″ W.
37	51º 54′ 04″ N.	137º 41′ 54″ W.
38	52º 45′ 12″ N.	138º 20′ 14″ W.
39	53º 29′ 20″ N.	138º 40′ 36″ W.
40	53º 40′ 39″ N.	138º 48′ 53″ W.
41	54º 13′ 45″ N.	139º 32′ 38″ W.
42	54º 39′ 25″ N.	139º 56′ 19″ W.
43	55º 20′ 18″ N.	140º 55′ 45″ W.
44	56º 07′ 12″ N.	141º 36′ 18″ W.
45	56º 28′ 32″ N.	142º 17′ 19 W.
46	56º 37′ 19″ N.	142º 48′ 57 W.
47	58º 51′ 04″ N.	153º 15′ 03″ W.

2

the sea areas located off the Atlantic coasts of the United States, Canada, and France (Saint-Pierre-et-Miquelon) and the Gulf of Mexico coast of the United States enclosed by geodesic lines connecting the following coordinates:

POINT	LATITUDE	LONGITUDE
1	60º 00′ 00″ N.	64º 09′ 36″ W.
2	60º 00′ 00″ N.	56º 43′ 00″ W.
3	58º 54′ 01″ N.	55º 38′ 05″ W.
4	57º 50′ 52″ N.	55º 03′ 47″ W.
5	57º 35′ 13″ N.	54º 00′ 59″ W.
6	57º 14′ 20″ N.	53º 07′ 58″ W.
7	56º 48′ 09″ N.	52º 23′ 29″ W.
8	56º 18′ 13″ N.	51º 49′ 42″ W.
9	54º 23′ 21″ N.	50º 17′ 44″ W.
10	53º 44′ 54″ N.	50º 07′ 17″ W.
11	53º 04′ 59″ N.	50º 10′ 05″ W.
12	52º 20′ 06″ N.	49º 57′ 09″ W.
13	51º 34′ 20″ N.	48º 52′ 45″ W.
14	50º 40′ 15″ N.	48º 16′ 04″ W.
15	50º 02′ 28″ N.	48º 07′ 03″ W.
16	49º 24′ 03″ N.	48º 09′ 35″ W.
17	48º 39′ 22″ N.	47º 55′ 17″ W.
18	47º 24′ 25″ N.	47º 46′ 56″ W.
19	46º 35′ 12″ N.	48º 00′ 54″ W.
20	45º 19′ 45″ N.	48º 43′ 28″ W.
21	44º 43′ 38″ N.	49º 16′ 50″ W.
22	44º 16′ 38″ N.	49º 51′ 23″ W.
23	43º 53′ 15″ N.	50º 34′ 01″ W.
24	43º 36′ 06″ N.	51º 20′ 41″ W.
25	43º 23′ 59″ N.	52º 17′ 22″ W.
26	43º 19′ 50″ N.	53º 20′ 13″ W.
27	43º 21′ 14″ N.	54º 09′ 20″ W.
28	43º 29′ 41″ N.	55º 07′ 41″ W.
29	42º 40′ 12″ N.	55º 31′ 44″ W.
30	41º 58′ 19″ N.	56º 09′ 34″ W.
31	41º 20′ 21″ N.	57º 05′ 13″ W.
32	40º 55′ 34″ N.	58º 02′ 55″ W.
33	40º 41′ 38″ N.	59º 05′ 18″ W.
34	40º 38′ 33″ N.	60º 12′ 20″ W.
35	40º 45′ 46″ N.	61º 14′ 03″ W.
36	41º 04′ 52″ N.	62º 17′ 49″ W.
37	40º 36′ 55″ N.	63º 10′ 49″ W.
38	40º 17′ 32″ N.	64º 08′ 37″ W.
39	40º 07′ 46″ N.	64º 59′ 31″ W.
40	40º 05′ 44″ N.	65º 53′ 07″ W.
41	39º 58′ 05″ N.	65º 59′ 51″ W.
42	39º 28′ 24″ N.	66º 21′ 14″ W.
43	39º 01′ 54″ N.	66º 48′ 33″ W.
44	38º 39′ 16″ N.	67º 20′ 59″ W.
45	38º 19′ 20″ N.	68º 02′ 01″ W.
46	38º 05′ 29″ N.	68º 46′ 55″ W.
47	37º 58′ 14″ N.	69º 34′ 07″ W.
48	37º 57′ 47″ N.	70º 24′ 09″ W.
49	37º 52′ 46″ N.	70º 37′ 50″ W.
50	37º 18′ 37″ N.	71º 08′ 33″ W.
51	36º 32′ 25″ N.	71º 33′ 59″ W.
52	35º 34′ 58″ N.	71º 26′ 02″ W.
53	34º 33′ 10″ N.	71º 37′ 04″ W.
54	33º 54′ 49″ N.	71º 52′ 35″ W.
55	33º 19′ 23″ N.	72º 17′ 12″ W.
56	32º 45′ 31″ N.	72º 54′ 05″ W.
57	31º 55′ 13″ N.	74º 12′ 02″ W.
58	31º 27′ 14″ N.	75º 15′ 20″ W.
59	31º 03′ 16″ N.	75º 51′ 18″ W.
60	30º 45′ 42″ N.	76º 31′ 38″ W.
61	30º 12′ 48″ N.	77º 18′ 29″ W.
62	29º 25′ 17″ N.	76º 56′ 42″ W.
63	28º 36′ 59″ N.	76º 47′ 60″ W.
64	28º 17′ 13″ N.	76º 40′ 10″ W.
65	28º 17′ 12″ N.	79º 11′ 23″ W.
66	27º 52′ 56″ N.	79º 28′ 35″ W.
67	27º 26′ 01″ N.	79º 31′ 38″ W.
68	27º 16′ 13″ N.	79º 34′ 18″ W.
69	27º 11′ 54″ N.	79º 34′ 56″ W.
70	27º 05′ 59″ N.	79º 35′ 19″ W.
71	27º 00′ 28″ N.	79º 35′ 17″ W.
72	26º 55′ 16″ N.	79º 34′ 39″ W.
73	26º 53′ 58″ N.	79º 34′ 27″ W.
74	26º 45′ 46″ N.	79º 32′ 41″ W.
75	26º 44′ 30″ N.	79º 32′ 23″ W.
76	26º 43′ 40″ N.	79º 32′ 20″ W.
77	26º 41′ 12″ N.	79º 32′ 01″ W.
78	26º 38′ 13″ N.	79º 31′ 32″ W.
79	26º 36′ 30″ N.	79º 31′ 06″ W.
80	26º 35′ 21″ N.	79º 30′ 50″ W.
81	26º 34′ 51″ N.	79º 30′ 46″ W.
82	26º 34′ 11″ N.	79º 30′ 38″ W.
83	26º 31′ 12″ N.	79º 30′ 15″ W.
84	26º 29′ 05″ N.	79º 29′ 53″ W.
85	26º 25′ 31″ N.	79º 29′ 58″ W.
86	26º 23′ 29″ N.	79º 29′ 55″ W.
87	26º 23′ 21″ N.	79º 29′ 54″ W.
88	26º 18′ 57″ N.	79º 31′ 55″ W.
89	26º 15′ 26″ N.	79º 33′ 17″ W.
90	26º 15′ 13″ N.	79º 33′ 23″ W.
91	26º 08′ 09″ N.	79º 35′ 53″ W.
92	26º 07′ 47″ N.	79º 36′ 09″ W.
93	26º 06′ 59″ N.	79º 36′ 35″ W.
94	26º 02′ 52″ N.	79º 38′ 22″ W.
95	25º 59′ 30″ N.	79º 40′ 03″ W.
96	25º 59′ 16″ N.	79º 40′ 08″ W.
97	25º 57′ 48″ N.	79º 40′ 38″ W.
98	25º 56′ 18″ N.	79º 41′ 06″ W.
99	25º 54′ 04″ N.	79º 41′ 38″ W.
100	25º 53′ 24″ N.	79º 41′ 46″ W.
101	25º 51′ 54″ N.	79º 41′ 59″ W.
102	25º 49′ 33″ N.	79º 42′ 16″ W.
103	25º 48′ 24″ N.	79º 42′ 23″ W.
104	25º 48′ 20″ N.	79º 42′ 24″ W.
105	25º 46′ 26″ N.	79º 42′ 44″ W.
106	25º 46′ 16″ N.	79º 42′ 45″ W.
107	25º 43′ 40″ N.	79º 42′ 59″ W.
108	25º 42′ 31″ N.	79º 42′ 48″ W.
109	25º 40′ 37″ N.	79º 42′ 27″ W.
110	25º 37′ 24″ N.	79º 42′ 27″ W.
111	25º 37′ 08″ N.	79º 42′ 27″ W.
112	25º 31′ 03″ N.	79º 42′ 12″ W.
113	25º 27′ 59″ N.	79º 42′ 11″ W.
114	25º 24′ 04″ N.	79º 42′ 12″ W.
115	25º 22′ 21″ N.	79º 42′ 20″ W.
116	25º 21′ 29″ N.	79º 42′ 08″ W.
117	25º 16′ 52″ N.	79º 41′ 24″ W.
118	25º 15′ 57″ N.	79º 41′ 31″ W.
119	25º 10′ 39″ N.	79º 41′ 31″ W.
120	25º 09′ 51″ N.	79º 41′ 36″ W.
121	25º 09′ 03″ N.	79º 41′ 45″ W.
122	25º 03′ 55″ N.	79º 42′ 29″ W.
123	25º 02′ 60″ N.	79º 42′ 56″ W.
124	25º 00′ 30″ N.	79º 44′ 05″ W.
125	24º 59′ 03″ N.	79º 44′ 48″ W.
126	24º 55′ 28″ N.	79º 45′ 57″ W.
127	24º 44′ 18″ N.	79º 49′ 24″ W.
128	24º 43′ 04″ N.	79º 49′ 38″ W.
129	24º 42′ 36″ N.	79º 50′ 50″ W.
130	24º 41′ 47″ N.	79º 52′ 57″ W.
131	24º 38′ 32″ N.	79º 59′ 58″ W.
132	24º 36′ 27″ N.	80º 03′ 51″ W.
133	24º 33′ 18″ N.	80º 12′ 43″ W.
134	24º 33′ 05″ N.	80º 13′ 21″ W.
135	24º 32′ 13″ N.	80º 15′ 16″ W.
136	24º 31′ 27″ N.	80º 16′ 55″ W.
137	24º 30′ 57″ N.	80º 17′ 47″ W.
138	24º 30′ 14″ N.	80º 19′ 21″ W.
139	24º 30′ 06″ N.	80º 19′ 44″ W.
140	24º 29′ 38″ N.	80º 21′ 05″ W.
141	24º 28′ 18″ N.	80º 24′ 35″ W.
142	24º 28′ 06″ N.	80º 25′ 10″ W.
143	24º 27′ 23″ N.	80º 27′ 20″ W.
144	24º 26′ 30″ N.	80º 29′ 30″ W.
145	24º 25′ 07″ N.	80º 32′ 22″ W.
146	24º 23′ 30″ N.	80º 36′ 09″ W.
147	24º 22′ 33″ N.	80º 38′ 56″ W.
148	24º 22′ 07″ N.	80º 39′ 51″ W.
149	24º 19′ 31″ N.	80º 45′ 21″ W.
150	24º 19′ 16″ N.	80º 45′ 47″ W.
151	24º 18′ 38″ N.	80º 46′ 49″ W.
152	24º 18′ 35″ N.	80º 46′ 54″ W.
153	24º 09′ 51″ N.	80º 59′ 47″ W.
154	24º 09′ 48″ N.	80º 59′ 51″ W.
155	24º 08′ 58″ N.	81º 01′ 07″ W.
156	24º 08′ 30″ N.	81º 01′ 51″ W.
157	24º 08′ 26″ N.	81º 01′ 57″ W.
158	24º 07′ 28″ N.	81º 03′ 06″ W.
159	24º 02′ 20″ N.	81º 09′ 05″ W.
160	23º 59′ 60″ N.	81º 11′ 16″ W.
161	23º 55′ 32″ N.	81º 12′ 55″ W.
162	23º 53′ 52″ N.	81º 19′ 43″ W.
163	23º 50′ 52″ N.	81º 29′ 59″ W.
164	23º 50′ 02″ N.	81º 39′ 59″ W.
165	23º 49′ 05″ N.	81º 49′ 59″ W.
166	23º 49′ 05″ N.	82º 00′ 11″ W.
167	23º 49′ 42″ N.	82º 09′ 59″ W.
168	23º 51′ 14″ N.	82º 24′ 59″ W.
169	23º 51′ 14″ N.	82º 39′ 59″ W.
170	23º 49′ 42″ N.	82º 48′ 53″ W.
171	23º 49′ 32″ N.	82º 51′ 11″ W.
172	23º 49′ 24″ N.	82º 59′ 59″ W.
173	23º 49′ 52″ N.	83º 14′ 59″ W.
174	23º 51′ 22″ N.	83º 25′ 49″ W.
175	23º 52′ 27″ N.	83º 33′ 01″ W.
176	23º 54′ 04″ N.	83º 41′ 35″ W.
177	23º 55′ 47″ N.	83º 48′ 11″ W.
178	23º 58′ 38″ N.	83º 59′ 59″ W.
179	24º 09′ 37″ N.	84º 29′ 27″ W.
180	24º 13′ 20″ N.	84º 38′ 39″ W.
181	24º 16′ 41″ N.	84º 46′ 07″ W.
182	24º 23′ 30″ N.	84º 59′ 59″ W.
183	24º 26′ 37″ N.	85º 06′ 19″ W.
184	24º 38′ 57″ N.	85º 31′ 54″ W.
185	24º 44′ 17″ N.	85º 43′ 11″ W.
186	24º 53′ 57″ N.	85º 59′ 59″ W.
187	25º 10′ 44″ N.	86º 30′ 07″ W.
188	25º 43′ 15″ N.	86º 21′ 14″ W.
189	26º 13′ 13″ N.	86º 06′ 45″ W.
190	26º 27′ 22″ N.	86º 13′ 15″ W.
191	26º 33′ 46″ N.	86º 37′ 07″ W.
192	26º 01′ 24″ N.	87º 29′ 35″ W.
193	25º 42′ 25″ N.	88º 33′ 00″ W.
194	25º 46′ 54″ N.	90º 29′ 41″ W.
195	25º 44′ 39″ N.	90º 47′ 05″ W.
196	25º 51′ 43″ N.	91º 52′ 50″ W.
197	26º 17′ 44″ N.	93º 03′ 59″ W.
198	25º 59′ 55″ N.	93º 33′ 52″ W.
199	26º 00′ 32″ N.	95º 39′ 27″ W.
200	26º 00′ 33″ N.	96º 48′ 30″ W.
201	25º 58′ 32″ N.	96º 55′ 28″ W.
202	25º 58′ 15″ N.	96º 58′ 41″ W.
203	25º 57′ 58″ N.	97º 01′ 54″ W.
204	25º 57′ 41″ N.	97º 05′ 08″ W.
205	25º 57′ 24″ N.	97º 08′ 21″ W.
206	25º 57′ 24″ N.	97º 08′ 47″ W.

3

the sea area located off the coasts of the Hawaiian Islands of Hawaii, Maui, Oahu, Molokai, Niihau, Kauai, Lānai, and Kaho’olawe, enclosed by geodesic lines connecting the following coordinates:

POINT	LATITUDE	LONGITUDE
1	22º 32′ 54″ N.	153º 00′ 33″ W.
2	23º 06′ 05″ N.	153º 28′ 36″ W.
3	23º 32′ 11″ N.	154º 02′ 12″ W.
4	23º 51′ 47″ N.	154º 36′ 48″ W.
5	24º 21′ 49″ N.	155º 51′ 13″ W.
6	24º 41′ 47″ N.	156º 27′ 27″ W.
7	24º 57′ 33″ N.	157º 22′ 17″ W.
8	25º 13′ 41″ N.	157º 54′ 13″ W.
9	25º 25′ 31″ N.	158º 30′ 36″ W.
10	25º 31′ 19″ N.	159º 09′ 47″ W.
11	25º 30′ 31″ N.	159º 54′ 21″ W.
12	25º 21′ 53″ N.	160º 39′ 53″ W.
13	25º 00′ 06″ N.	161º 38′ 33″ W.
14	24º 40′ 49″ N.	162º 13′ 13″ W.
15	24º 15′ 53″ N.	162º 43′ 08″ W.
16	23º 40′ 50″ N.	163º 13′ 00″ W.
17	23º 03′ 20″ N.	163º 32′ 58″ W.
18	22º 20′ 09″ N.	163º 44′ 41″ W.
19	21º 36′ 45″ N.	163º 46′ 03″ W.
20	20º 55′ 26″ N.	163º 37′ 44″ W.
21	20º 13′ 34″ N.	163º 19′ 13″ W.
22	19º 39′ 03″ N.	162º 53′ 48″ W.
23	19º 09′ 43″ N.	162º 20′ 35″ W.
24	18º 39′ 16″ N.	161º 19′ 14″ W.
25	18º 30′ 31″ N.	160º 38′ 30″ W.
26	18º 29′ 31″ N.	159º 56′ 17″ W.
27	18º 10′ 41″ N.	159º 14′ 08″ W.
28	17º 31′ 17″ N.	158º 56′ 55″ W.
29	16º 54′ 06″ N.	158º 30′ 29″ W.
30	16º 25′ 49″ N.	157º 59′ 25″ W.
31	15º 59′ 57″ N.	157º 17′ 35″ W.
32	15º 40′ 37″ N.	156º 21′ 06″ W.
33	15º 37′ 36″ N.	155º 22′ 16″ W.
34	15º 43′ 46″ N.	154º 46′ 37″ W.
35	15º 55′ 32″ N.	154º 13′ 05″ W.
36	16º 46′ 27″ N.	152º 49′ 11″ W.
37	17º 33′ 42″ N.	152º 00′ 32″ W.
38	18º 30′ 16″ N.	151º 30′ 24″ W.
39	19º 02′ 47″ N.	151º 22′ 17″ W.
40	19º 34′ 46″ N.	151º 19′ 47″ W.
41	20º 07′ 42″ N.	151º 22′ 58″ W.
42	20º 38′ 43″ N.	151º 31′ 36″ W.
43	21º 29′ 09″ N.	151º 59′ 50″ W.
44	22º 06′ 58″ N.	152º 31′ 25″ W.
45	22º 32′ 54″ N.	153º 00′ 33″ W.

The United States Caribbean Sea area includes:

1

the sea area located off the Atlantic and Caribbean coasts of the Commonwealth of Puerto Rico and the United States Virgin Islands, enclosed by geodesic lines connecting the following coordinates:

POINT	LATITUDE	LONGITUDE
1	17º 18′ 37″ N.	67º 32′ 14″ W.
2	19º 11′ 14″ N.	67º 26′ 45″ W.
3	19º 30′ 28″ N.	65º 16′ 48″ W.
4	19º 12′ 25″ N.	65º 6′ 8″ W.
5	18º 45′ 13″ N.	65º 0′ 22″ W.
6	18º 41′ 14″ N.	64º 59′ 33″ W.
7	18º 29′ 22″ N.	64º 53′ 51″ W.
8	18º 27′ 35″ N.	64º 53′ 22″ W.
9	18º 25′ 21″ N.	64º 52′ 39″ W.
10	18º 24′ 30″ N.	64º 52′ 19″ W.
11	18º 23′ 51″ N.	64º 51′ 50″ W.
12	18º 23′ 42″ N.	64º 51′ 23″ W.
13	18º 23′ 36″ N.	64º 50′ 17″ W.
14	18º 23′ 48″ N.	64º 49′ 41″ W.
15	18º 24′ 11″ N.	64º 49′ 0″ W.
16	18º 24′ 28″ N.	64º 47′ 57″ W.
17	18º 24′ 18″ N.	64º 47′ 1″ W.
18	18º 23′ 13″ N.	64º 46′ 37″ W.
19	18º 22′ 37″ N.	64º 45′ 20″ W.
20	18º 22′ 39″ N.	64º 44′ 42″ W.
21	18º 22′ 42″ N.	64º 44′ 36″ W.
22	18º 22′ 37″ N.	64º 44′ 24″ W.
23	18º 22′ 39″ N.	64º 43′ 42″ W.
24	18º 22′ 30″ N.	64º 43′ 36″ W.
25	18º 22′ 25″ N.	64º 42′ 58″ W.
26	18º 22′ 26″ N.	64º 42′ 28″ W.
27	18º 22′ 15″ N.	64º 42′ 3″ W.
28	18º 22′ 22″ N.	64º 38′ 23″ W.
29	18º 21′ 57″ N.	64º 40′ 60″ W.
30	18º 21′ 51″ N.	64º 40′ 15″ W.
31	18º 21′ 22″ N.	64º 38′ 16″ W.
32	18º 20′ 39″ N.	64º 38′ 33″ W.
33	18º 19′ 15″ N.	64º 38′ 14″ W.
34	18º 19′ 7″ N.	64º 38′ 16″ W.
35	18º 17′ 23″ N.	64º 39′ 38″ W.
36	18º 16′ 43″ N.	64º 39′ 41″ W.
37	18º 11′ 33″ N.	64º 38′ 58″ W.
38	18º 3′ 2″ N.	64º 38′ 3″ W.
39	18º 2′ 56″ N.	64º 29′ 35″ W.
40	18º 2′ 51″ N.	64º 27′ 2″ W.
41	18º 2′ 30″ N.	64º 21′ 8″ W.
42	18º 2′ 31″ N.	64º 20′ 8″ W.
43	18º 2′ 3″ N.	64º 15′ 57″ W.
44	18º 0′ 12″ N.	64º 2′ 29″ W.
45	17º 59′ 58″ N.	64º 1′ 4″ W.
46	17º 58′ 47″ N.	63º 57′ 1″ W.
47	17º 57′ 51″ N.	63º 53′ 54″ W.
48	17º 56′ 38″ N.	63º 53′ 21″ W.
49	17º 39′ 40″ N.	63º 54′ 53″ W.
50	17º 37′ 8″ N.	63º 55′ 10″ W.
51	17º 30′ 21″ N.	63º 55′ 56″ W.
52	17º 11′ 36″ N.	63º 57′ 57″ W.
53	17º 4′ 60″ N.	63º 58′ 41″ W.
54	16º 59′ 49″ N.	63º 59′ 18″ W.
55	17º 18′ 37″ N.	67º 32′ 14″ W.

]

Wetshistoriek

Appendix VII vervangen bij Res. MEPC.202(62), met ingang van 1 januari 2013.

Wetshistoriek

Vervangen bij Res. MEPC.202(62), met ingang van 1 januari 2013.

Appendix VIII Form of International Energy (IEE) Certificate

[

]

Redactionele commentaar

Appendix VIII wordt als volgt gewijzigd bij Res. MEPC.316(74), met ingang van 1 oktober 2020:

In the introductory paragraph, the words “by resolution MEPC.203(62)” are deleted.

Wetshistoriek

Appendix VIII ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Wetshistoriek

Ingevoegd bij Res. MEPC.203(62), met ingang van 1 januari 2013.

Wetshistoriek

Gewijzigd bij Res. MEPC.316(74), met ingang van 1 oktober 2020.

Appendix IX Information to be submitted to the IMO Ship Fuel Oil Consumption Database

[

Identity of the ship
	IMO number
Period of calendar year for which the data is submitted
	Start date (dd/mm/yyyy)
	End date (dd/mm/yyyy)
Technical characteristics of the ship
	Ship type, as defined in regulation 2 of this Annex or other (to be stated)
	Gross tonnage (GT) ⁽¹⁾
	Net tonnage (NT) ⁽²⁾
	Deadweight tonnage (DWT) ⁽³⁾
	Power output (rated power ⁽⁴⁾ ) of main and auxiliary reciprocating internal combustion engines over 130 kW (to be stated in kW)
	EEDI (if applicable)
	Ice class ⁽⁵⁾
Fuel oil consumption, by fuel oil type ⁽⁶⁾ in metric tonnes and methods used for collecting fuel oil consumption data
Distance travelled
Hours underway

⁽¹⁾	Gross tonnage should be calculated in accordance with the International Convention on Tonnage Measurement of Ships, 1969.
⁽²⁾	Net tonnage should be calculated in accordance with the International Convention on Tonnage Measurement of Ships, 1969. If not applicable, note “N/A”.
⁽³⁾	DWT means the difference in tonnes between the displacement of a ship in water of relative density of 1025 kg/m³ at the summer load draught and the lightweight of the ship. The summer load draught should be taken as the maximum summer draught as certified in the stability booklet approved by the Administration or an organization recognized by it.
⁽⁴⁾	Rated power means the maximum continuous rated power as specified on the nameplate of the engine.
⁽⁵⁾	Ice class should be consistent with the definition set out in the International Code for ships operating in polar waters (Polar Code), (resolutions MEPC.264(68) and MSC.385(94)). If not applicable, note “N/A”.
⁽⁶⁾	As defined in the 2014 Guidelines on the method of calculation of the Attained Energy Efficiency Design Index (EEDI) for new ships (resolution MEPC.245(66), as amended) or other (to be stated).

]

Wetshistoriek

Appendix IX ingevoegd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Wetshistoriek

Ingevoegd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Appendix X Form of Statement of Compliance ? Fuel Oil Consumption Reporting

[

]

Redactionele commentaar

Appendix X wordt als volgt gewijzigd bij Res. MEPC.316(74), met ingang van 1 oktober 2020:

In the introductory paragraph, the word “by” between “Pollution” and “Ships” in the first sentence is replaced by the word “from”.

Wetshistoriek

Appendix X ingevoegd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Wetshistoriek

Ingevoegd bij Res. MEPC.278(70), met ingang van 1 maart 2018.

Wetshistoriek

Gewijzigd bij Res. MEPC.316(74), met ingang van 1 oktober 2020.

02/11/1973 Marpol-verdragInternationaal Verdrag van 2 november 1973 ter voorkoming van verontreiniging door schepen

Annex VI Regulations for the Prevention of Air Pollution from Ships

Chapter I General

Regulation 1 Application

Regulation 2 Definitions

Regulation 3 Exceptions and Exemptions

Regulation 4 Equivalents

Chapter II Survey, certification and means of control

Regulation 5 Surveys

Regulation 6 Issue or endorsement of Certificates and Statements of Compliance related to fuel oil consumption reporting

Regulation 7 Issue of a Certificate by another Party

Regulation 8 Form of Certificates and Statements of Compliance related to fuel oil consumption reporting

Regulation 9 Duration and Validity of Certificates and Statements of Compliance related to fuel oil consumption reporting

Regulation 10 Port State Control on Operational Requirements

Regulation 11 Detection of Violations and Enforcement

Chapter III Requirements for control of emissions from ships

Regulation 12 Ozone Depleting Substances

Regulation 13 Nitrogen Oxides (NOx)

Regulation 14 Sulphur Oxides (SOx) and Particulate Matter

Regulation 15 Volatile Organic Compounds (VOCs)

Regulation 16 Shipboard Incineration

Regulation 17 Reception Facilities

Regulation 18 Fuel Oil Availability and Quality

Chapter 4 Regulations on energy efficiency for ships

Regulation 19 Application

Regulation 20 Attained Energy Efficiency Design Index (Attained EEDI)

Regulation 21 Required EEDI

Regulation 22 Ship Energy Efficiency Management Plan (SEEMP)

Regulation 22A Collection and reporting of ship fuel oil consumption data

Regulation 23 Promotion of technical co-operation and transfer of technology relating to the improvement of energy efficiency of ships

Chapter 5 Verification of compliance with the provisions of this annex

Regulation 24 Application

Regulation 25 Verification of compliance

Appendix I Form of International Air Pollution Prevention (IAPP) Certificate and Supplement (Regulation 8)

Appendix II Test cycles and weighing factors (Regulation 13)

Appendix III Criteria and procedures for designation of emission control areas (Regulation 13.6 and regulation 14.3)

1 Objectives

2 Process for the designation of emission control areas

3 Criteria for designation of an emission control area

4 Procedures for the assessment and adoption of emission control areas by the organization

5 Operation of emission control areas

Appendix IV Type approval and operating limits for shipboard incinerators (Regulation 16)

Appendix V Information to be included in the bunker delivery note (Regulation 18.5)

Appendix VI Fuel verification procedure for MARPOL Annex VI / Fuel oil samples (Regulation 18.8.2)

Appendix VII Emission Control Area, (Regulation 13.6 and regulation 14.3)

Appendix VIII Form of International Energy (IEE) Certificate

Appendix IX Information to be submitted to the IMO Ship Fuel Oil Consumption Database

Appendix X Form of Statement of Compliance ? Fuel Oil Consumption Reporting

02/11/1973 Marpol-verdrag
Internationaal Verdrag van 2 november 1973 ter voorkoming van verontreiniging door schepen
