Part B-1 Stability

Regulation 5 Intact stability

Regulation 5-1 Stability information to be supplied to the masterRefer also to the Guidelines for the preparation of intact stability information (MSC/Circ.456) and the Revised guidance to the master for avoiding dangerous situations in adverse weather and sea conditions (MSC.1/Circ.1228).

Regulation 6 Required subdivision index R

Regulation 7 Attained subdivision index A

Regulation 7-1 Calculation of the factor pi

1

The factor p_i for a compartment or group of compartments shall be calculated in accordance with paragraphs 1.1 and 1.2 using the following notations:

j	=	the aftmost damage zone number involved in the damage starting with No.1 at the stern;
n	=	the number of adjacent damage zones involved in the damage;
k	=	is the number of a particular longitudinal bulkhead as barrier for transverse penetration in a damage zone counted from shell towards the centre line. The shell has k = 0;
x1	=	the distance from the aft terminal of Ls to the aft end of the zone in question;
x2	=	the distance from the aft terminal of Ls to the forward end of the zone in question;
b	=	[the mean transverse distance in metres measured at right angles to the centreline at the deepest subdivision draught between the shell and an assumed vertical plane extended between the longitudinal limits used in calculating the factor pi and which is a tangent to, or common with, all or part of the outermost portion of the longitudinal bulkhead under consideration. This vertical plane shall be so orientated that the mean transverse distance to the shell is a maximum, but not more than twice the least distance between the plane and the shell. If the upper part of a longitudinal bulkhead is below the deepest subdivision draught the vertical plane used for determination of b is assumed to extend upwards to the deepest subdivision waterline. In any case, b is not to be taken greater than B/2.]

If the damage involves a single zone only:

pi	= p (x1j,x2j) · [r(x1j,x2j,bk) – r(x1j,x2j,bk-1)]

If the damage involves two adjacent zones:

pi	=	p (x1j,x2j+1) · [r(x1j,x2j+1,bk) – r(x1j,x2j+1,bk-1)]
	–	p (x1j,x2j) · [r(x1j,x2j,bk) – r(x1j,x2j,bk-1)]
	–	p (x1j+1,x2j+1) · [r(x1j+1,x2j+1,bk) – r(x1j+1,x2j+1,bk-1)]

If the damage involves three or more adjacent zones:

pi	=	p(x1j,x2j+n-1) · [r(x1j,x2j+n-1,bk) – r(x1j,x2j+n-1,bk-1)]
	–	p(x1j,x2j+n-2) · [r(x1j,x2j+n-2,bk) – r(x1j,x2j+n-2,bk-1)]
	–	p(x1j+1,x2j+n-1) · [r(x1j+1,x2j+n-1,bk) – r(x1j+1,x2j+n-1,bk-1)]
	+	p(x1j+1,x2j+n-2) · [r(x1j+1,x2j+n-2,bk) – r(x1j+1,x2j+n-2,bk-1)]

and where r(x1, x2, b₀) = 0

1.1

The factor p(x1, x2) is to be calculated according to the following formulae:

Overall normalized max damage length:	Jmax = 10/33
Knuckle point in the distribution:	Jkn = 5/33
Cumulative probability at Jkn:	pk = 11/12
Maximum absolute damage length:	lmax = 60 m
Length where normalized distribution ends:	L* = 260 m

Probability density at J = 0:

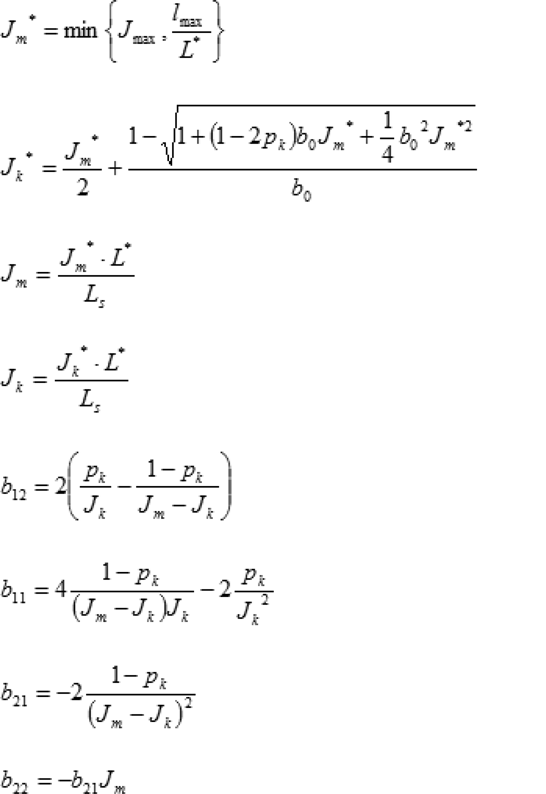

When L_s≤ L*:

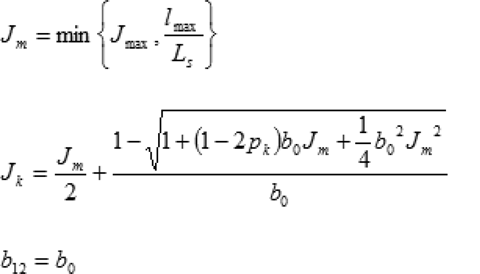

When L_s > L*:

The non-dimensional damage length:

J =

(x2 – x1)

Ls

The normalized length of a compartment or group of compartments:

J_n is to be taken as the lesser of J and J_m

1.1.1 Where neither limits of the compartment or group of compartments under consideration coincides with the aft or forward terminals:

J≤J_k:

p(x1, x2) = p₁ = 1/6 J² (b₁₁J + 3b₁₂)

J > J_k:

p(x1,x2) = p2 = – 1 3 b11Jk 3 + 1 2 (b11J – b12)jk 2 + b12JJk – 1 3 b21 (Jn 3 – Jk 3)
	+ 1 2 (b21J – b22)(Jn 2 – Jk 2)+b22J(Jn – Jk)

1.1.2

Where the aft limit of the compartment or group of compartments under consideration coincides with the aft terminal or the forward limit of the compartment or group of compartments under consideration coincides with the forward terminal:

J ≤ j_k:

p(x1,x2) =

1

2

(p₁ + J)

J > j_k:

p(x1,x2) =

1

2

(p₂ + J)

1.1.3

Where the compartment or groups of compartments considered extends over the entire subdivision length (L_s):

p(x1, x2) = 1

1.2

The factor r(x1, x2, b) shall be determined by the following formulae:

where:

C = 12.J_b.(–45.J_b+4)

where:

J_b =

b

15B

1.2.1

Where the compartment or groups of compartments considered extends over the entire subdivision length (L_s):

G = G₁ =

1

2

b₁₁J_b ²+b₁₂J_b

1.2.2

Where neither limits of the compartment or group of compartments under consideration coincides with the aft or forward terminals:

G = G₂ = –

1

3

b₁₁J₀ ³+

1

2

(b₁₁J – b₁₂)J₀ ²+b₁₂JJ₀

where:

J₀ = min(J,J_b)

1.2.3

Where the aft limit of the compartment or group of compartments under consideration coincides with the aft terminal or the forward limit of the compartment or group of compartments under consideration coincides with the forward terminal:

G =

1

2

(G₂+G₁J)

Regulation 7-2 Calculation of the factor si

1

The factor s_i shall be determined for each case of assumed flooding, involving a compartment or group of compartments, in accordance with the following notations and the provisions in this regulation.

θ_e is the equilibrium heel angle in any stage of flooding, in degrees;

θ_v is the angle, in any stage of flooding, where the righting lever becomes negative, or the angle at which an opening incapable of being closed weathertight becomes submerged;

GZ _max is the maximum positive righting lever, in metres, up to the angle θ_v;

Range is the range of positive righting levers, in degrees, measured from the angle θ_e. The positive range is to be taken up to the angle θ_v;

Flooding stage is any discrete step during the flooding process, including the stage before equalization (if any) until final equilibrium has been reached.

1.1

The factor s_i, for any damage case at any initial loading condition, d_i, shall be obtained from the formula:

s_i = minimum {s_{intermediate,i} or s_final,i · s_mom,i}

where:

s_{intermediate,i} is the probability to survive all intermediate flooding stages until the final equilibrium stage, and is calculated in accordance with paragraph 2;

s_final,i is the probability to survive in the final equilibrium stage of flooding. It is calculated in accordance with paragraph 3;

s_mom,i is the probability to survive heeling moments, and is calculated in accordance with paragraph 4.

2

[For passenger ships, and cargo ships fitted with cross-flooding devices, the factor s_{intermediate,i} is taken as the least of the s-factors obtained from all flooding stages including the stage before equalization, if any, and is to be calculated as follows:

where GZ_max is not to be taken as more than 0.05 m and Range as not more than 7°. s_{intermediate,i} = 0, if the intermediate heel angle exceeds 15º for passenger ships and 30° for cargo ships.

For cargo ships not fitted with cross-flooding devices the factor s_{intermediate,i} is taken as unity, except if the Administration considers that the stability in intermediate stages of flooding may be insufficient, it should require further investigation thereof.

For passenger and cargo ships, where cross-flooding devices are fitted, the time for equalization shall not exceed 10 min.]

3

[The factor s_final,i shall be obtained from the formula:

where:

GZ_max is not to be taken as more than TGZ_max;

Range is not to be taken as more than TRange;

TGZ_max = 0.20 m, for ro-ro passenger ships each damage case that involves a ro-ro space,

TGZ_max = 0.12 m, otherwise;

TRange = 20º, for ro-ro passenger ships each damage case that involves a ro-ro space,

TRange = 16º, otherwise;

K = 1 if θ_e ≤ θ_min

K = 0 if θ_e ≥ θ_max

where:

θ_min is 7° for passenger ships and 25° for cargo ships; and

θ_max is 15° for passenger ships and 30° for cargo ships.]

4

[The factor s_mom,i is applicable only to passenger ships (for cargo ships s_mom,i shall be taken as unity) and shall be calculated at the final equilibrium from the formula:

_mom,i =

(GZmax − 0.04) × Displacement

Mheel

where:

Displacement is the intact displacement at the respective draught (d_s, d_p or d_l).

M_heel is the maximum assumed heeling moment as calculated in accordance with subparagraph 4.1; and

s_mom,i ≤ 1

4.1

The heeling moment M_heel is to be calculated as follows:

M_heel = maximum (M_passenger or M_wind or M_{survivalcraft})

4.1.1

M_passenger is the maximum assumed heeling moment resulting from movement of passengers, and is to be obtained as follows:

M_passenger = (0.075 × N_p) × (0.45 × B) (tm)

where:

N_p is the maximum number of passengers permitted to be on board in the service condition corresponding to the deepest subdivision draught under consideration; and

B is the breadth of the ship as defined in regulation 2.8.

Alternatively, the heeling moment may be calculated assuming the passengers are distributed with 4 persons per square metre on available deck areas towards one side of the ship on the decks where muster stations are located and in such a way that they produce the most adverse heeling moment. In doing so, a weight of 75 kg per passenger is to be assumed.

4.1.2

M_wind is the maximum assumed wind moment acting in a damage situation:

M_wind = (P × A × Z) / 9,806 (tm)

where:

P = 120 N/m²;

A = projected lateral area above waterline;

Z = distance from centre of lateral projected area above waterline to T/2; and

T = respective draught (d_s, d_p or d_l).]

4.1.3

M_{Survivalcraft} is the maximum assumed heeling moment due to the launching of all fully loaded davit-launched survival craft on one side of the ship. It shall be calculated using the following assumptions:

.1

all lifeboats and rescue boats fitted on the side to which the ship has heeled after having sustained damage shall be assumed to be swung out fully loaded and ready for lowering;

.2

for lifeboats which are arranged to be launched fully loaded from the stowed position, the maximum heeling moment during launching shall be taken;

.3

a fully loaded davit-launched liferaft attached to each davit on the side to which the ship has heeled after having sustained damage shall be assumed to be swung out ready for lowering;

.4

persons not in the life-saving appliances which are swung out shall not provide either additional heeling or righting moment; and

.5

life-saving appliances on the side of the ship opposite to the side to which the ship has heeled shall be assumed to be in a stowed position.

5

[Unsymmetrical flooding is to be kept to a minimum consistent with the efficient arrangements. Where it is necessary to correct large angles of heel, the means adopted shall, where practicable, be self-acting, but in any case where controls to equalization devices are provided they shall be operable from above the bulkhead deck of passenger ships and the freeboard deck of cargo ships. These fittings together with their controls shall be acceptable to the Administration ⁽¹⁹⁾ . Suitable information concerning the use of equalization devices shall be supplied to the master of the ship.]

5.1

Tanks and compartments taking part in such equalization shall be fitted with air pipes or equivalent means of sufficient cross-section to ensure that the flow of water into the equalization compartments is not delayed.

5.2

[The factor s_i is to be taken as zero in those cases where the final waterline, taking into account sinkage, heel and trim, immerses:]

.1

the lower edge of openings through which progressive flooding may take place and such flooding is not accounted for in the calculation of factor s_i. Such openings shall include air-pipes, ventilators and openings which are closed by means of weathertight doors or hatch covers; and

.2

any part of the bulkhead deck in passenger ships considered a horizontal evacuation route for compliance with chapter II-2.

5.3

[The factor s_i is to be taken as zero if, taking into account sinkage, heel and trim, any of the following occur in any intermediate stage or in the final stage of flooding:

.1

immersion of any vertical escape hatch in the bulkhead deck of passenger ships and the freeboard deck of cargo ships intended for compliance with chapter II-2;

.2

any controls intended for the operation of watertight doors, equalization devices, valves on piping or on ventilation ducts intended to maintain the integrity of watertight bulkheads from above the bulkhead deck of passenger ships and the freeboard deck of cargo ships become inaccessible or inoperable; and

.3

immersion of any part of piping or ventilation ducts located within the assumed extent of damage and carried through a watertight boundary if this can lead to the progressive flooding of compartments not assumed as flooded.]

5.4

However, where compartments assumed flooded due to progressive flooding are taken into account in the damage stability calculations multiple values of s_{intermediate,i} may be calculated assuming equalization in additional flooding phases.

5.5

[Except as provided in paragraph 5.3.1, openings closed by means of watertight manhole covers and flush scuttles, remotely operated sliding watertight doors, sidescuttles of the non-opening type as well as watertight access doors and watertight hatch covers required to be kept closed at sea need not be considered.]

6

Where horizontal watertight boundaries are fitted above the waterline under consideration the s-value calculated for the lower compartment or group of compartments shall be obtained by multiplying the value as determined in paragraph 1.1 by the reduction factor v_m according to paragraph 6.1, which represents the probability that the spaces above the horizontal subdivision will not be flooded.

6.1

The factor v_m shall be obtained from the formula:

v_m = v(H_j,n,m, d) – v(H_j,n,m-1, d)

where:

H_j,n,m is the least height above the baseline, in metres, within the longitudinal range of x_1(j)...x_2(j+n-1) of the mth horizontal boundary which is assumed to limit the vertical extent of flooding for the damaged compartments under consideration;

H_j,n,m-1 is the least height above the baseline, in metres, within the longitudinal range of x_1(j)...x_2(j+n-1) of the (m-1)th horizontal boundary which is assumed to limit the vertical extent of flooding for the damaged compartments under consideration;

j signifies the aft terminal of the damaged compartments under consideration;

m represents each horizontal boundary counted upwards from the waterline under consideration;

d is the draught in question as defined in regulation 2; and

x₁ and x₂ represent the terminals of the compartment or group of compartments considered in regulation 7-1.

6.1.1

The factors v(H_j,n,m, d) and v(H_j,n,m-1, d) shall be obtained from the formulae:

if (H_m-d) is less than, or equal to, 7.8 m;

in all other cases

where:

v(H_j,n,m,d) is to be taken as 1, if H_m coincides with the uppermost watertight boundary of the ship within the range (x1_(j)...x2_(j+n-1)), and

v(H_j,n,0, d) is to be taken as 0.

In no case is v_m to be taken as less than zero or more than 1.

6.2

In general, each contribution d_A to the index A in the case of horizontal subdivisions is obtained from the formula:

d_A = p_i[v₁S_{min 1} + (v2 – v1)S_{min 2} + ..+ (1-v_m-1)S_{min m}]

where:

v_m = the v-value calculated in accordance with paragraph 6.1;

s_min = the least s-factor for all combinations of damages obtained when the assumed damage extends from the assumed damage height H_m downwards.

---

(19)	Reference is made to the Revised recommendation on a standard method for evaluating cross-flooding arrangements, adopted by the Organization by resolution MSC.362(92), as may be amended.

Regulation 7-3 Permeability

Regulation 8 Special requirements concerning passenger ship stability

Regulation 8-1 System capabilities and operational information after a flooding casualty on passenger ships
